Plywood Heavy Duty Two Heads Calibrate Sander Machine with Automatic Conveyor Line

Product Details

Product Description

Product Description

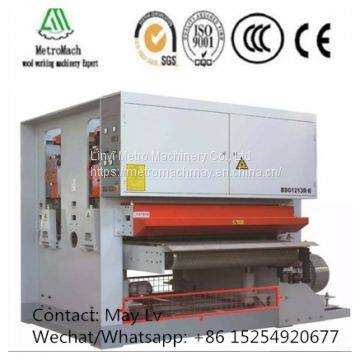

Heavy Duty Two Heads Calibrate Sander Machine with Conveyor Line
1. Aotomatic Sanding Conveyor Line
2. Product Features
1. This calibrating sander machine is mainly used for thickness calibrating plywood,particleboard, MDF etc.
2. Overall welding frame structure, long service life, high rigidity.
3. Big sanding roller diameter, accurate dynamic balancing,high precision. ensures good sanding performance.
4. Multiple safety design, safe and reliable.
5. International brand advanced electrical components, less trouble, more stable.
3. Technical Parameters

Model. No	BSG1213R-R
Sanding width	40-1300mm
Sanding thickness	2.5-80mm
Sanding length	>=780mm
Sanding belt linear speed	25m/s
Sanding belt size	1300*2620mm
Motor power of sanding belt	55kw 45kw
Lifting motor power of platform	0.75kw
Motor power of brush rollers	0.75kw
Panel in-feeding speed	20-40m/min
Motor power of conveyor	11kw
Motor power of conveyor reducer	7.5kw
Total motor	109kw
Operating pressure	0.6MPa
Dust extraction	15000m³/h
Dimension	3030*2900*2440mm
Weight	8100kg

4. More Pictures
5. Contact

---
