Product Details
Product Description
Product Description

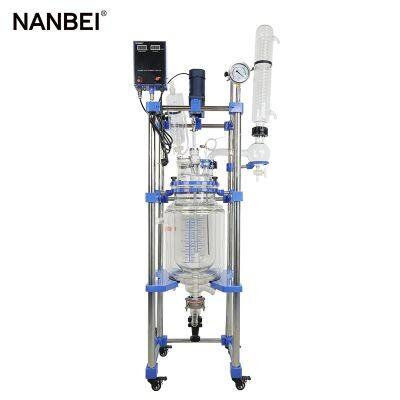

Chemical Extraction System Lab Double Wall Jacketed Glass Reactor
Description
Glass reactors are mainly used for testing and production in chemical, biological products and other industries.
This product is under the condition of vacuum negative pressure, using the principle of constant speed stirring to evenly stir the raw materials to make the materials react in the kettle body.
The glass interlayer can be connected with high-temperature circulation equipment for heating, evaporation, separation, solvent recovery, etc.; it can also be connected with refrigeration circulation equipment for low-temperature reaction of the materials in the kettle; External high and low temperature circulation device.
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
Specification
1~5 liters glasss reactor
Model
| NB-1L
| NB-2L
| NB-3L
| NB-5L
|
Glass Material
| GG-17
| GG-17
| GG-17
| GG-17
|
Frame Material
| 304 SUS
| 304 SUS
| 304 SUS
| 304 SUS
|
Reaction bottle capacity
| 1L
| 2L
| 3L
| 5L
|
Jacketed Capacity
| 0.4L
| 0.5L
| 0.6L
| 0.8L
|
Flanged out of the oil
circulation port
| Low feed high outlet
| Low feed high outlet
| Low feed high outlet
| Low feed high outlet
|
Reaction bottle cover
| 5
| 5
| 5
| 5
|
Discharger port distance
to ground
| 30mm
| 30mm
| 30mm
| 30mm
|
Temp. range
| -80-250℃
| -80-250℃
| -80-250℃
| -80-250℃
|
Vacuum degreee
| 0.098Mpa
| 0.098Mpa
| 0.098Mpa
| 0.098Mpa
|
Stirring speed
| 0-800rpm
| 0-800rpm
| 0-800rpm
| 0-800rpm
|
Stirring diameter
| 8mm
| 8mm
| 8mm
| 8mm
|
Stirring power
| 40W
| 40W
| 90W
| 90W
|
Coltage(V/Hz)
| 220V/50HZ
| 220V/50HZ
| 220V/50HZ
| 220V/50HZ
|
Dimension(mm)
| 350*345*1000
| 350*345*1000
| 350*410*1250
| 350*410*1250
|
Plate size(mm)
| 325*345
| 325*345
| 325*410
| 325*410
|
Packign size（mm）
| 1200*480*400
| 1200*480*400
| 1380*500*400
| 1380*500*400
|
Packign weight（KG）
| 32
| 32
| 38
| 38
|
10-100 liters glass reactor
Model
| NB-10L
| NB-20
| NB-25L
| NB-30L
| NB-50L
| NB-80L
| NB-100L
|
Glass Material
| GG-17
| GG-17
| GG-17
| GG-17
| GG-17
| GG-17
| GG-17
|
Frame Material
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
|
Fittings Material
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
| 304 Stainless steel
|
Moves
| Brake Caster
| Brake Caster
| Brake Caster
| Brake Caster
| Brake Caster
| Brake Caster
| Brake Caster
|
Reaction bottle capacity
| 10L
| 20L
| 25L
| 30L
| 50L
| 80L
| 100L
|
Jacketed Capacity
| 6L
| 8L
| 8L
| 10L
| 12L
| 16L
| 18L
|
Flanged out of the oil circulation port
| Low feed high outlet
| Low feed high outlet
| Low feed high outlet
| Low feed high outlet
| Low feed high outlet
| Low feed high outlet
| Low feed high outlet
|
Reaction bottle cover
| Six port
| Six port
| Six port
| Six port
| Six port
| Six port
| Six port
|
Discharger port distance to ground
| 450mm
| 450mm
| 450mm
| 450mm
| 450mm
| 450mm
| 450mm
|
Temp. range
| -80-250℃
| -80-250℃
| -80-250℃
| -80-250℃
| -80-250℃
| -80-250℃
| -80-250℃
|
Vacuum degreee
| 0.098Mpa
| 0.098Mpa
| 0.098Mpa
| 0.098Mpa
| 0.098Mpa
| 0.098Mpa
| 0.098Mpa
|
Stirring speed
| 0-450rpm
| 0-450rpm
| 0-450rpm
| 0-450rpm
| 0-450rpm
| 0-450rpm
| 0-450rpm
|
Stirring diameter
| 12mm
| 12mm
| 12mm
| 12mm
| 12mm
| 15mm
| 15mm
|
Stirring power
| 90W1/3
| 120W1/3
| 120W1/3
| 120W1/3
| 120W1/3
| 250W1/3
| 250W1/3
|
Coltage(V/Hz)
| 220V/50Hz
| 220V/50Hz
| 220V/50Hz
| 220V/50Hz
| 220V/50Hz
| 220V/50Hz
| 220V/50Hz
|
Dimension(mm)
| 520*520*2000
| 560*560*2100
| 560*560*2300
| 760*560*2300
| 760*560*2450
| 610*610*2400
| 610*610*2400
|
Packing size(mm)
| 1370*590*800
| 1480*660*810
| 1670*670*860
| 1720*680*850
| 1720*680*850
| 1900*700*870
| 1900*700*870
|
Packign weight（KG）
| 68kg
| 80kg
| 88kg
| 88
| 92
| 125
| 125
|
>>
