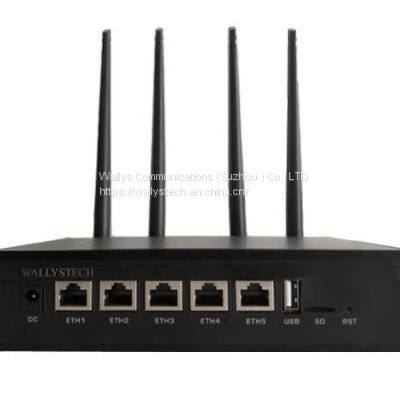

Wallys Industrial indoor AP/DR-AP6018-A Quaclomm IPQ6018 OpenWrt 2.4/5G dual bands wifi6 router
DR-AP6018-A
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
Skype/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
Indoor Aluminium alloy material
IPQ6018 support OpenWrt 2.4/5G dual bands
Description
DR-AP6018-A (Two Versions) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR6018(IPQ6018) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);
1 x Enclosure.
Dipole antenna
■ 2 x 2.4G&5G Antenna
■ 5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■ Dimension: 192x 123 x 44 mm
■ Aluminum alloy material
■ Support Wallys’ PCBA Mainboard
Parameter
| Rating
| Unit
|
Supply Voltage
| 24V~48
| V
|
Operating Temperature Range
| -40 to +70
| ºC
|
Storage Temperature Range
| -45 to +105
| ºC
|
Operating Humidity Range
| 5 to +95 (non-condensing)
| %
|
Symbol
| Parameter
|
CPU
| Qualcomm-Atheros IPQ6010
|
CPU Frequency
| Quad-core ARM 64 bit A53 @1.8 GHz processor
|
System Memory
| 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
|
Ethernet Port
| 1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port
|
NGFF Slot
| M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0
|
SD Card Slot
| 1x SD Card Slot
|
USB /header
| 1x USB 2.0 Port
|
POE
| 24V~48V passive POE/Active POE(Suport 802.3bt)
|
DC Jack
| 24V power supply
|
LED header
| FFC/FPC Connector
|
Serial Port
| 1x Serial Port 4 Pin Connector
|
Wireless
| On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain
4 x MMCX Connectors
|
| Bluetooth | CSR8811 BLE 4.2 |
Nor Flash
| 32MB
|
Nand Flash
| 256MB
|
DDR
| 256MB~512MB
|
Dimension
| 185mm x 116mm
|
