High Quality Manual CE Approved Sumore Metal Machine Price Torno Mecanico Universal Lathe

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)

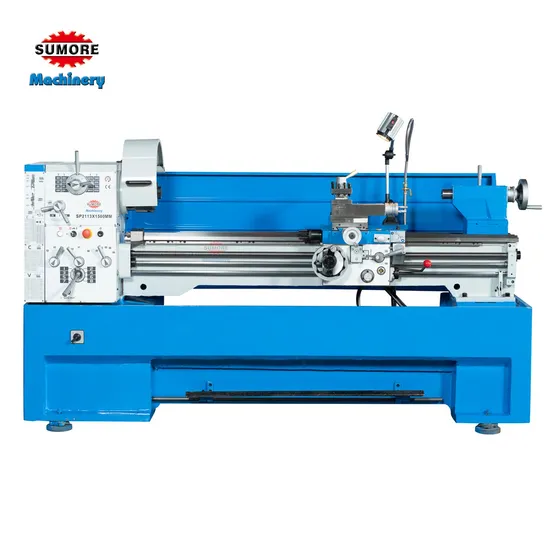

410 x 1000/1500mm tour variable speed torno horizontal universal metal heavy duty lathe machine price mechanical lathe SP2113
Quick Detail: Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000/1500mm
Swing over bed: 410mm
Swing over gap: 580mm
Spindle bore: 52mm
Description:
SP2113 is lathe machine metal and lathe machine horizontal, the spindle speed could be 16 steps or variable speed. It belongs to the most economic lathe machine in the industrial field. The main feature/advantage is as below:
Vertical and horizontal feed adopts interlocking mechanism and considerable safety design. The spinlde bore is supported with precision roller bearings Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. Strictly following national standards that could meet requirement of worldwide adapted CE and SGS certification. Easy operating speed change levers dopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch. Not only for common processing work, like turning, end-face, taper or screws, but also on special
occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Product Parameters

Model	SP2113
Swing over Bed	410mm
Swing over Cross Slide	255 mm
Swing over Gap	580 mm
Distance Between Centers	1,000 / 1,500 mm
Width of Bed	250 mm
Spindle Bore	52 mm
Spindle Taper	MT6
Spindle Nose	D1-6
Range of Spindle Speeds	45 - 1,800 rpm
Range of Longitudinal Feeds	0.050 - 1.700 mm/rev
Range of Traverse Feeds	0.025 - 0.850 mm/rev
Compound Slide Travel	140 mm
Cross Slide Travel	210 mm
Tailstock Quill Travel	120 mm
Tailstock Quill Taper	MT4
Number of Imperial Threads	45
Range of Imperial Threads	2 - 72 TPI
Number of Metric Threads	39
Range of Metric Threads	0.2 - 14.0 mm
Main Motor Power	2,200 / 3,300 w
Coolant Power	100 w
Overall Dimensions (LxWxH)	1,940 x 850 x 1,320 mm
et Weight	1,550 / 1,600 kg
acking Size (LxWxH)	2,060 x 900 x 1,640 mm

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
