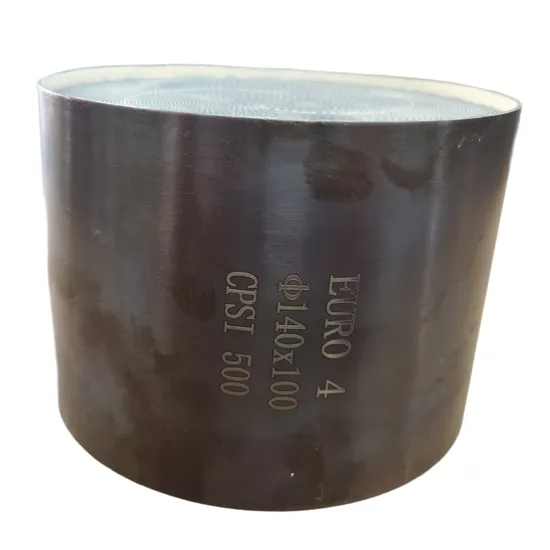

Euro 4 Standard TWC Three Way Metallic Catalyst Applied to Catalytic Converters

Product Description

Product Description

We cuold provide various metallic catalyst and uncoated metal honeycomb substrate in different shaps and dimensions ranging form cylindrical, rectangular, square, racetrack, oval, trapezoidal, etc. In addition to the standard sizes and shaps, we also undertake custom size as well as shap developments.
Customization is acceptable,we will greatly appreciated if you could provide us with drawings and samples. △Customization(D1900mm*L360mm)

Parameters

ITEMS	PARAMETERS
Emission Standard	Euro 0, Euro 3, Euro 4, Euro 5
Material of Out Shell	SUS316L, SUS304. SUH444. SUH441 or in customization
Material of Inner Core	FeCr21Al6
Catalyst	Pt, Pd, Rh
Diameter	Customization(from 10mm to 1900mm)
Length	Customization(from 9mm to150 mm per section, can be spliced into any length )
Cell Density	From 5 to 1200 channels per square inch, normally 100 cpsi, 200 cpsi, 300 cpsi, 400 cpsi, 500 cpsi, 600 cpsi.
Core Type	1core, 2 cores (S core), 3 cores
Shape	cylindrical, rectangular, square, racetrack, oval, trapezoidal or customization
Thickness of Shell	From 0.5mm to 3 mm, supporting without shell
Thickness of Inside Foil	From 0.03mm to 0.18 mm
Application	TWC, DOC,SCR used in for exhaust purification in vehicles, construction machinery, and industrial fields

If you need customization, please tell us the specifications you need, such as Φ120*110*100mm,500 cpsi, PGM loading 20g/ft3, Pt:Pd:Rh=15:2:1. The size of Φ120*110*100mm means diameter of out shell is 120mm,length of out shell is 110mm,length of inner core is 100mm.

Packing and Transportation

△Carton Package △Pallet Package △Warehouse All products will be well packaged to accommodate different international shipping methods.

FAQ

1.Do you accept customization?
Yes, we do. Please tell us your detailed requirements, such as diameter, height, cells density and usage, etc. We will do it for you.
2.Samples free or not?
You can get a free sample if we have it in stock, but you should to pay the freight.
3.How can you guarantee quality?
All products will be automatically inspected by machines after production is completed, and manual re-inspection before shipment.
4.What products you can provide?
We can privide diesel particulate filter, ceramic honeycomb substrate and matal honeycomb substrate for catalyst, catalytic converter and sensors.If you need other components of exhaust aftertreatment device, please tell us and we will find them for you.
5.What's about the payment?
30% payment in advance and balance before shipment, we will show you the photos of goods and package before you pay the balance payment.
T/T,Western Union,Paypal are acceptable.You can pay it in Chinese yuan, US dollars, Euros, or Japanese yen.

---
