4 5 Axis Precision CNC Vertical Milling Machine Automatic High Precision CNC Machining Center

Product Description

4 5 Axis Precision CNC Vertical Milling Machine Automatic High Precision CNC Machining Center

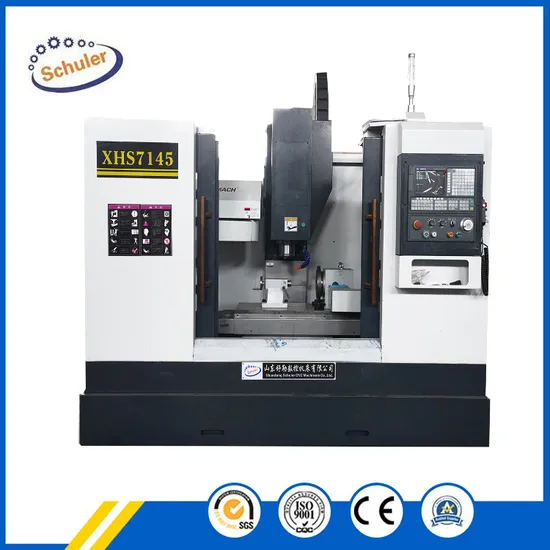

Product Picture:
Features:
XH7145 CNC milling machine use
This machine is a vertical machining center suitable for machining and mold making. It can adapt to the processing requirements from roughing to finishing, and can complete various processes such as milling, drilling, tapping and boring.
Main structural features of XK7145A CNC milling machine
.The fuselage and main components are high-strength cast iron, and the metallographic structure is stable, ensuring the stability of long-term use of the machine tool;
.The bottom of the column is A-shaped bridge span structure, combined with the large box base, greatly reducing the vibration of the fuselage during heavy cutting;
.High speed, high precision, high rigidity spindle unit
Standard Equipment:
Full enclosed splash guard, G plus450 control, umbrella tool changer, Air-condition, Rigid tapping, Ethernet and USB interface, Oil and coolant separation on machine frame, Automatic lubrication system, Coolant system, LED working lamp, End of program light, Electronic Hand wheel(MPG), Tool box, Leveling bolts and blocks, Air gun, Handy coolant gun, operation manuals
CNC Milling Machine Technical Parameters:

SPECIFICATION	UNIT	XHS7145	XH7145A	XK7145A
X-axis travel	mm	600	700	700
Y- axis travel	mm	450	450	450
Z- axis travel	mm	500	500	500
Spindle nose to table	mm	130-630	120-620	120-620
Spindle center to column guide-way face	mm	485	460	460
High speed feeding of X,Y, axis	mm/min	24000	12000	12000
High speed feeding of Z axis	mm/min	18000	10000	10000
Feeding speed	mm/min	1-5000	1-5000	1-5000
Size of table	mm	1000x450	1000x450	1000x450
Max. loading capacity of table	kg	600	600	600
T-slot NO./width /distance of table		3/18/160	5/18/80	5/18/80
Spindle max. speed	r/min	8000	8000	8000
Main motor rated power	kw	5.5/7.5	5.5/7.5	5.5/7.5
Spindle nose taper		BT40	BT40	BT40
ax. diameter of tools	mm	80/130	80/130	-
Max. length of tools		300	300	-
Max. weight of tools	kg	6	6	6
Positioning accuracy	mm	0.025(GB)0.016(Real)	0.025(GB)0.016(Real)	0.05(GB)0.02(Real)
Re-positioning accuracy	mm	0.015(GB)0.008(Real)	0.015(GB)0.01(Real)	0.02(GB)0.012(Real)
Pneumatic press	mpa	0.6	0.6	0.6
N.W	kg	3500	3500	3400
Overall dimension	mm	2500x2000x2450	2500x2000x2450	2500×2000×2450

CNC Milling Machine Detail Display:
CNC Milling Machine In the Workshop:
CNC Milling Machine Packaging:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Shandong Schuler CNC Machinery Co.,Ltd.
Add: Tengzhou City ,Shandong Province ,China
Edwin

---
