New Design Mini Slant Bed Metal CNC Turning Center Machine Tool Tck36A China Lathe CNC Machine Tools

Product Description

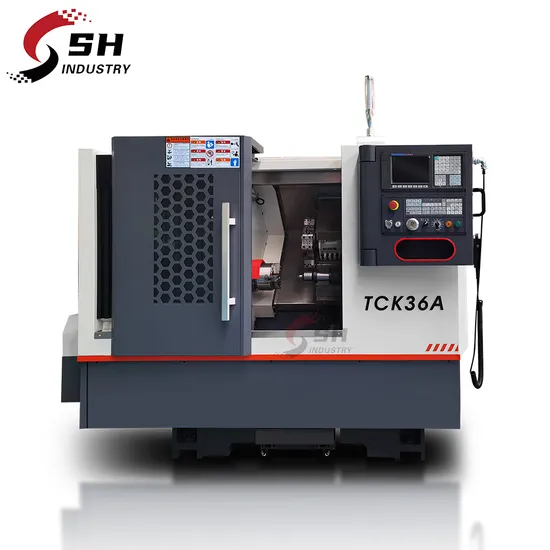

Mini Slant Bed Metal Lathe Machine TCK36A China CNC Lathe Machine Tool
Product Description
Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Application :
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
Main technical specifications:

Specification	Unit	TCK36A
Max.swing over bed	mm	360
Max.swing over cross slide	mm	140
Max. Processing length	mm	300
Max. Bar capacity	mm	41
Max.processing diameter of plate type of workpiece	mm	360
Spindle nose type		A2-5
Spindle bore	mm	48
Spindle speed range	r/min	50-4000
Main motor power	kw	5.5
Chuck form		Hydraulic chuck
Chuck size	inch	6
X axis rapid traverse	M/min	24
Z axis rapid traverse	M/min	24
X axis servo motor torque	N.m	6
Z axis servo motor torque	N.m	6
X axis travel	mm	170
Z axis travel	mm	350
Guide rail type		linear rail
Tool post type		Horizontal 8 station
Tool shank size	mm	20x20/dia.25
Tailstock type		hydraulic
Tailstock quill dia.	mm	65
Tailstock quill travel	mm	870
Tailstock quill taper		MT4
Total rated power	kw	9
Total rated current	A	19
Machine weight	kg	2400
Machine dimension	mm	2200x1600x1850

Detailed Photos
Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
