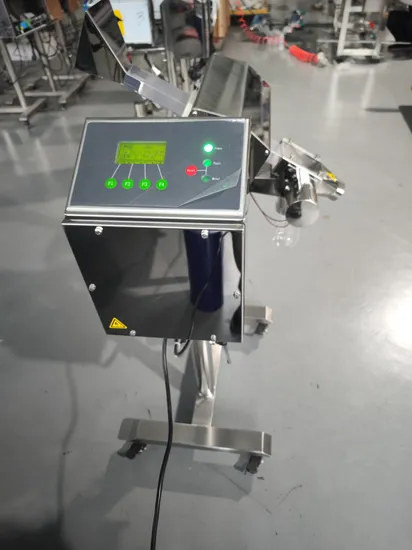

2025 Hot Sale SS304 Stainless Steel Tablet/Capsule Metal Detector Separator

Product Description

2025 hot sale SS304 stainless steel tablet/capsule Metal detector separator
1.Product IntroductionEspecially to use with tablet press machine and capsule filling machines to detect magnetic and non-magnetic metal impurities, and quickly reject from the production line without interfering the normal production process. And reduce material loss. This machine can use with any model tablet press machine & capsule filling machine, or use as independent unit. Site: This machine can use with any model tablet press machine & capsule filling machine, or use as independent unit. Detect coil is made of stainless steel and wholly sealed inside. One time pouring and fixed. The system is suit for industrial environment with vibration, hitting, and static interference, for detecting materials with water or metallic element. Modular structure: system control box, detect head, reject unit, machine frame are separated design, easy cleaning and maintenance. Most advanced micro process control system with self learning function. Comply with national standards, suitable for long time production application with stable performance.
2. Working Principle: When metal impurities go through the metal detector head, the detect coil balance was interfered. At this moment metal detect signal is amplified and sent to detect signal. System rejects material immediately.
Working Process: Material 1.falls and goes through inclined detect coil .2. metal impurities is detected and separation flap .3. is actuated immediately. Material with metal impurities 4. is rejected from rejection tunnel
Inlet Magnetic Test Coil Reject board Metal Rejects Outlet Outlet 3.Product characteristics sensitivity is adjustable Most advanced micro process control system with self learning function. The height and inclination angle of the manual lift can be easily moved and cleaned, and the lockable casters are installed Main control parts are imported. Control menu is simple operation with one-button operation mode, with Chinese/English operation menu. The Metal Detector can memorize and make up its functions. It possesses 200 product storages and 1000 accidental memories. Open design, tool free product contact parts dismantling within 10 seconds. No dead angle, easy for cleaning and water wash. Metal detector whole body safe structure, no dead angle. Power supply is safe 24V voltage. Totally independent sensor system. Tool free dismantling, easy maintenance and cleaning. Independent control system, connect to sensor system by modular air plugs. Independent reject unit by quick connection. No need air supply. Operating voltage:220/110VAC(+10%,-15%) reject time is adjustable within 0.05-60 seconds Protection Degrees:IP65. 4. Technical data:

Model	T68/18	T60/30
Inlet	68*18mm	60*30mm
Sensitivity(mm)	Fe 0.2 SUS 0.4 NoFe 0.25	Fe 0.2 SUS 0.4 NoFe 0.3
Max Throughput	460000pcs/H	600000 pcs/H
Weight	40kg	40kg

---
