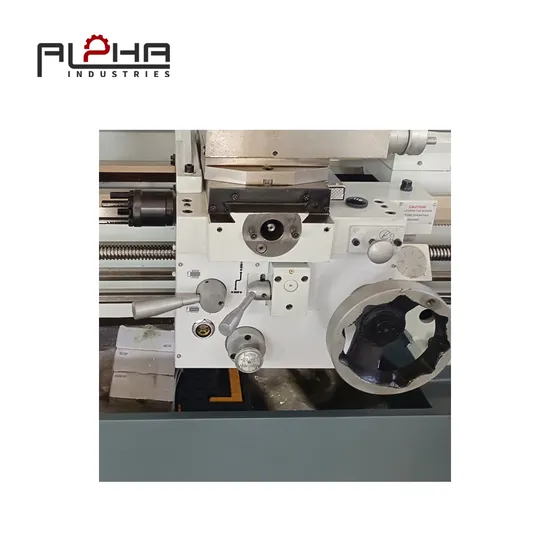

Hot Selling in Southeast Asia Lathe for 1640gh Precision Gear Head Lathe

Product Description

Product Description

• 3 jaw chuck and adapter

• 4 jaw chuck and adapter

• Face plate/steady rest

• Follow rest/oil gun

• Thread chasing dial

• Operation manual

• One set of wrenches

• 2 dead centers

• Sleeve

• Foot brake/Coolant pump

• Halogen lamp/Splash guard

• One piece iron casting stand

• Micro carriage stop

• Quick change tool post

• Driving plate

• Taper turning attachment

• Digital readout

• Nr 12 standard for Brazil

Product Parameters

Model No.	Unit	1640GH/1660GH
distance between centers	mm	1000/1500(39.37°/59.06")
swing over bed	mm	420(16.54")
swing over cross slide	mm	255(10.04")
taperof spindle bore		MT6
spindle nose	mm	052(2.05")
step of spindle speeds	steps	16
range of spindle speeds	rpm	45-1800
rangeof longitudinal feeds	mm/r	0.05-1.7
range of inch threads		2-72T.PI
range ofmetric threads	mm	0.2-14(0.01"-0.55)
tailstockquilltrave	mm	120(4.72")
taper of tailstock quil		MT4
dia of tailstock sleeve	mm	50(1.97)
main motor	kW	3.3/2.8 or4.5
packing size	mm	2060/2560×910×1640
N.W./G.W	kg	1550/1800,1700/1950

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
