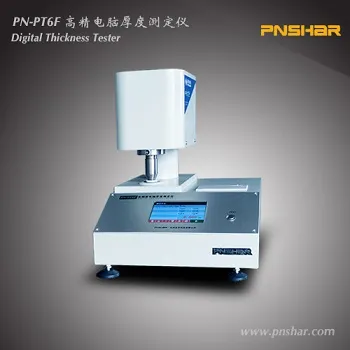

Pnshar Paper Digital Thickness Testing Meter

Product Description

Product Description As our latest innovation, PN-PT6E digtal paper thickness tester thickness micrometer incorporates a robust mechanical design and features a proprietary electronic measurement system which produces extremely stable zero control and maintains perfect calibration. Unlike conventional thickness testers, PN-PT6E digital micrometer does not need adjustment. The unit features a one-touch auto zero and a PC controlled calibration routine. PN-PT6E can be configured to meet variety international specifications and test standards for different types of materials including plastic film, paper, corrugated, tissue paper, nonwovens, textiles and other sheet like substrates.
It works automatic control, the measuring head up and down, you just move the sample.
Product Applications Paper. paper board. Corrugated cardboard, Corrugated Package.
Product Standards ISO 534,ISO438,GB/T 451.3,GB/T 6547;
Product Specification

ITEM	RESULT
Power supply:	AC220V±10%, 2A, 50Hz
Indication error:	±0.3%
Indication mobility:	≤0.3%
Measuring range:	≤4mm
Division value:	0.001mm
Measuring parallelism:	≤0.002mm
Touching area:	(200±5)mm²
Connecting area:	200±5mm2
Down speed:	≤3mm/s
Built-in thermo-printer

---
