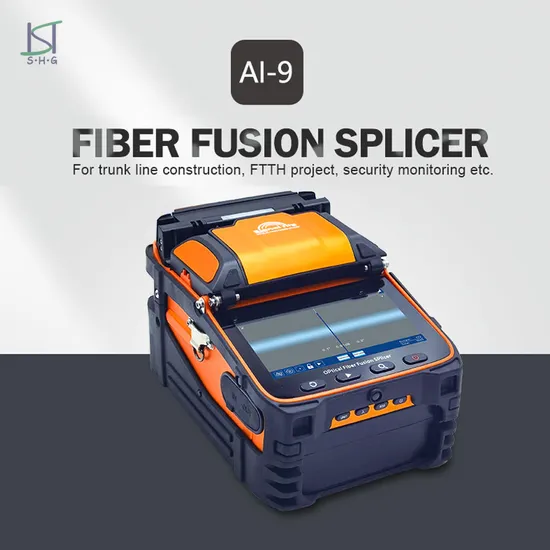

Automatic Intelligent Six Motors Arc Trunk Optical Fusion Splicing Machine Signal Fire Ai-9 Fiber Optic Fusion Splicer

Product Description

Product Description Automatic Intelligent Optical Fiber Fusion Splicer AI-9 Fiber Optic 5S Splicing Machine

Signal Fire AI-9 adopts the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

Detailed Photos
CORE PARTS QUALITY ASSURANCE
Accessories
Product Parameters

Construction	Description
Fiber Alignment	Core/cladding alignment / Manual alignment
Splicing Time	5s
Heating Time	15s
Heating Mode	Automatic heating(Preheating)
Focus Mode	Six motors Auto focus
Applicable Fibers	SM(G.652&G.657),MM(G.651),DS(G.657), NZDS(G.655)
Splice Loss	0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS)
Control Technology	Real-time control and calibration of fusion ARC
Return Loss	Better than 60DB
Fiber Diameter	Cladding Diameter:80-150μm
	Coating Diameter:100-1000μm
Fiber Cleave Length	Coating less than 250μm:8-16mm
	Coating less than 250-1000μm:16mm
Software Updates Length	Automatically update, Update by a key
Boot Time	1 second
Language Setting	10 languages to switch freely(Chinese, English, French, Russian, Italian, Portuguese,
	Polish, Spanish, Thai, Arabic)
Tension Test	Standard 2N
Fiber Holders	3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification	300 for X or Y view, 150 for X or Y view
Screen	5 inch TFT color display
Splicing Mode	Normal / high precision splicing
Splicing Method	Fully automatic,Step by step splicing
Splicing Record Storage	Synchronize to the phone, the server to cloud storage unlimited
Built-in battery	7800 mA high-capacity lithium battery, charging time ≥3.5 hours, continuous splicing and heating about 260 times
Power Supply	Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power
Operating Conditions	Temperature -15 ~ +50 ºC, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤15m / s
Shrinkable Tube	60mm,50mm,40mm,25mm
Product Protection	Waterproof, dust proof, shock-resistant

Certifications CE, ROHS, FCC, ISO9001
Packaging & Shipping
After Sales Service Lifetime Warranty.
FAQ Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received).Q4. Where is your nearest sea-port and airport? SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q5. What's your Payment Term? SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation: SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.
