Automatic 5 Gallon Bottle Water Bag Packing Bagging Machine

Product Description

Product Description
Automatic 5 Gallon Bottle Water Bag Packing Machine
Product Description
Machine description:
1.Automatic "film feeding", "feed", "bag", "sealing" once completed, save manpower, improve efficiency, and realize unmanned operation docking production line.
2.Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.
3.Automatic feeding, length can be automatic adjusted with the cooperation between the electric eye and timer.
4.Automatic roll feed, the induction motor shall be set to automatic wind waste, making it easier for customers during operation.
5.Unique safety device in the package, the sealing knife will quickly stop action when mistakenly cut into happened, it will not hurt the packaging.
Machine application:
1.With the feature of high efficiency packing and simple operation process, the whole production process just need to turn on the power switch of the machine then it will automatic finish the whole polybag packing process. Production capacity is 900 – 1500 bottles/hour.
2. The wrapping bag is appressed to the bottle, and looks beautiful and high style.
3. The polybag packing can help to protect the bottle body from wearing and soiled.
4. Using the high finish wrap film in roll, will save about 30-40% cost than buying complete polybag for manual wrapping.
Main characteristics:
nveyor system: variable frequency, adjustable speed operation.
main machine material: 45#Steel spray or SUS304, other parts is SUS304,SUS201 or electroplating material
cooling way of heat cutting: Medium pressure air dry cooling
sleeve film way: the feeding of the film is assisted by stepping motor
Sealing and cutting way:heating wire pressure
Entering barrel way: automatic enter barrel, automatic conveyor
Applicable product specification: 5 gallon barrel or customized barrel,Unified specification
Applicable film specification: width: 700-720mm thickness: 0.006-0.015mm, diameter:350mm, no electrostatic, wrapped tight
The maximum load of conveyor belt: 20KG/0.5m/s
Safety protection: Mechanical protection

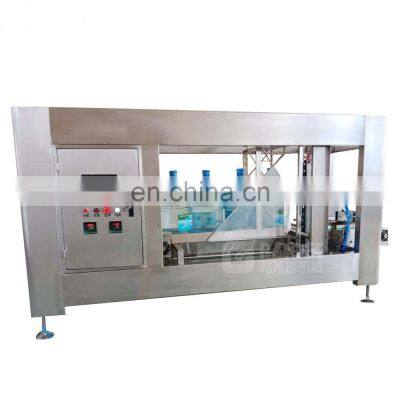

Machine picture:
Working with 5 gallon bottling line
Main technical data:
ModelQGF-100QGF-200QGF-300QGF-450QGF-600QGF-900QGF-1200
Filling heads12234612
Volume3&5 Gallon
Barrel sizeΦ270*490mm
Capacity(b/h)60-100100-240250-300400-450600-800800-9001000-1200
Air pressure(MPa)0.4-0.60.4-0.60.4-0.60.4-0.60.60.60.6
Air consumption(m³/min)0.370.370.60.811.51.8
Motor power(kw)1.381.753.83.87.59.7513.5
Rated power(kw)1.381.753.83.87.59.7513.5
Rated voltage380V/ 50HZ
Weight(KG)68080015002100300035004500

Company information
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
