12V/24V Smart Adjustable Temperature Controller Control Switch Sensitive Digital Wall Thermostat

Product Description

Product Description

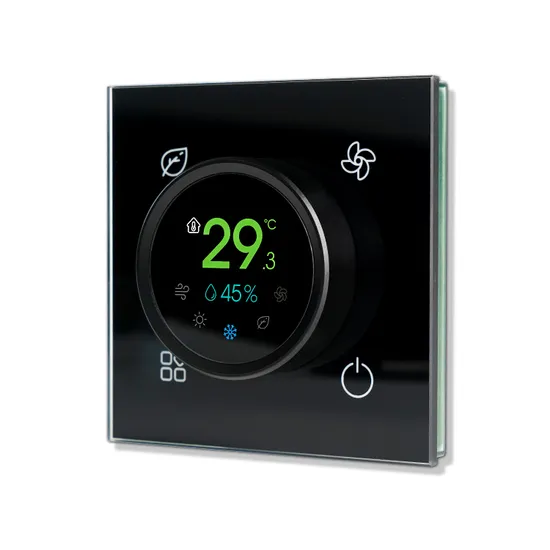

The 18DTC is a device developed by our company for central air conditioning control systems, which is used to monitor
and set the room temperature and automatically turn on and off various air conditioning equipment to make the indoor
environment reach a comfortable state. Its working principle is to monitor the indoor temperature through the temperature
sensor, compare the current indoor temperature and the size of the set temperature, when the room temperature is higher
(summer) or lower (winter) than the set value, the control circuit starts, otherwise it turns off, the display of the thermostat
panel includes humidity value, room temperature value, set value, fan stall, cooling/heating/ventilation mode status, etc.
The panel can be manually set the Okan machine stall (high/medium/low ) and the set value of the room temperature, and
the energy-saving automatic working mode can also be set. In the energy-saving automatic working mode, the thermostat
can independently select the mode and control the fan coil fan gear and running time to maintain the rate temperature stable
around the set value.
In order to improve the intelligent and user-friendly management of hotel rooms and to achieve the goal of saving energy and
improving economic efficiency, GTD provides a series of products and complete solutions from intelligent security to intelligent
lighting to bring guests a good staying experience.
Applicable Scenarios
The product is mainly used in hotels, guesthouses, B&Bs, villas, clubs, flats, hospitals and other guest room intelligent projects.
Intelligent Temperature Control
Accurate measurement and control, strong anti-interference, advanced technology, long life cycle, easy to adjust the desired
temperature, no need to worry about the wrong temperature, make your home life more comfortable.
Intelligent Adjustable Thermostat
This thermostat has an adjustable temperature control range of: 15-30°C in cooling, heating mode and a temperature
measurement accuracy of: ±0.5ºC(Temperature at 5-60 degrees).Within the temperature control range, the cooling unit
will automatically switch off when the room temperature is higher than the set temperature, and the cooling unit will
automatically switch on when the room temperature is lower than the set temperature to achieve automatic temperature
control.
Real-Time Humidity Monitoring
The most comfortable humidity range varies at different temperatures. This intelligent temperature control allows you to
obtain the exact humidity level in the room, allowing you to monitor the humidity range at the room temperature in real time
and providing you with effective reference data for controlling the optimum humidity range in the room.
Four Modes To Choose From
This thermostat has a range of four modes of control: cooling/heating/ventilation/energy saving. These modes allow for better
temperature control, for example the energy saving mode effectively reduces energy consumption while providing the cool
comfort that comes with cooling.
Adjustable Air Speed
The thermostat's air speed control range generally has four air speed modes: low, medium, high and automatic, allowing for
finer control of indoor air circulation and better temperature control.
Selected Materials, Personalised Design
The thermostat panel is made of 4mm thick high purity toughened glass with a smooth and flat surface, responsive keys, easy
to clean, non-tarnishing and anti-ageing, as well as being waterproof, safe and corrosion resistant. Customised glass colours
and icons are available.
Product Paramenters
Made Of High Quality Material
The display of this thermostat is made of high quality TFT LCD screen with high display quality, more accurate and perfect
picture colours and low power consumption and power consumption. With a tempered glass touch screen and a black one-
piece appearance, it has a strong sense of design and is perfect for modern decoration.
Product Features
1.Ajuste y medición de la temperatura
2.Velocidad del aire alta/media/baja/automática
3. Cuatro modos: refrigeración/calefacción/aire/ahorro de energía
4. Ajuste manual de la temperatura/parámetros por defecto
5. Ajuste del límite de temperatura máxima y mínima de la habitación (15-30°C)
Wire Diagram
Use CAT5/6 network cables or 4-core cables dedicated for RS485.

Product name	18D knob thermostat
Power supply voltage	12-24v DC
Communication mode	RS485
Baud rate	9600, 19200, 38400
Control mode	touch + knob control
Temperature measurement accuracy	±0.5ºC(Temperature at 5-60 degrees)
Humidity	0~100%RH
Working environment	-40ºC~125ºC
Temperature setting	15ºC~30ºC
Wind speed	3 speeds + automatic
Mode	cooling, heating, ventilation + energy saving
Sensor	Digital temperature and humidity sensor
Screen material	TFT LCD screen
Screen resolution	240*240
Screen size	1.28 inches

WELCOME OEM CUSTOMIZATION
OEM Customiztion
Welcome to ask OEM customization,we have a dedicated design and R&D team, as well as a professional production line,
you can trust us, and let us know your needs. GTD will provide you with professional design, R&D and production services
until you are satisfied with the final product.
