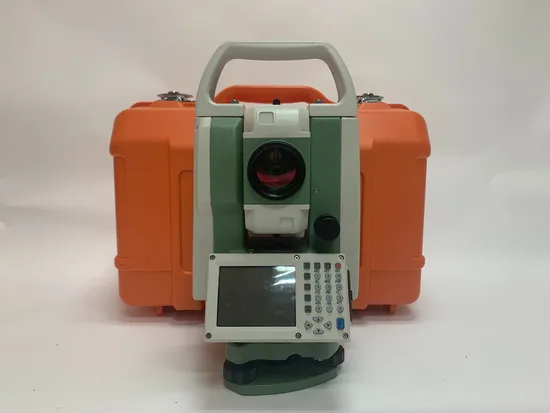

Excellent Foif Rts382 R10 Total Station High Precision Instrument

US$2,000.00
1-4 Sets
US$1,900.00
5-9 Sets
US$1,800.00
10+ Sets

Basic Info.

Model NO.
FOIF RTS-382 R10
Range Finding
3-15km
Accuracy
2mm
Vertical Lines
1
Horizontal Line
1
After-Sales Service
Professional Guidance
Warranty
1 Year
Precise Measurement
0.3s
Minimum Display
0.1mm
Angle Measuring Method
Absolute Encoding (Code Disc Diameter 79mm)
Minimum Reading
0.1″/1″/5″
Erect
Transport Package
Carton
Specification
50*40*40 cm
Trademark
FOIF
Origin
Suzhou, China
HS Code
9015800090
Production Capacity
5000

Packaging & Delivery

Package Size
50.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.000kg

Product Description

Product Description 1. Prism-free measuring range;
2. Laser pointing, automatically open when not ranging,
which is convenient for aiming at the target in a dark environment;
3. Double-sided color QVGA display;
4. Laser plummet, clearly visible in sunlight, adjustable brightness;
5.With 4G memory; support SD card expansion.
Detailed Photos
Product Parameters
Distance measurement
RTS382 5000m/single prism
RTS382R5 500m/non-prism; 800m/reflector; 5000m/single prism
RTS382R6 600m/non-prism; 1000m/reflector; 5000m/single prism
RTS382R8 800m/non-prism; 1200m/reflector; 6000m/single prism
RTS382R10 1000m/non-prism; 1200m/reflector; 6000m/single prism
Precise measurement 0.3S
Precision ±(2mm+2×10-6·D)
Minimum display 0.1mm
Angle measurement
Angle measuring method Absolute encoding (code disc diameter 79mm)
Accuracy 2″
Minimum reading 0.1″/1″/5″
Telescope
Image Erect
Field of view 1°30′
Objective lens effective aperture Φ48mm
Resolution 3″
Magnification 30X
Shortest sight distance 1.0m
Compensator
Compensation method Double axis compensation
Compensation range ±6′
Power
Voltage 7.4V DC(rechargeable lithium-ion battery)
Working time ≥ 12 hours
Others
Display 2.7-inch color display on both sides
Communication RS-232C/USB/SD card copy
Waterproof and dustproof IP66
