Product Description
Product Description

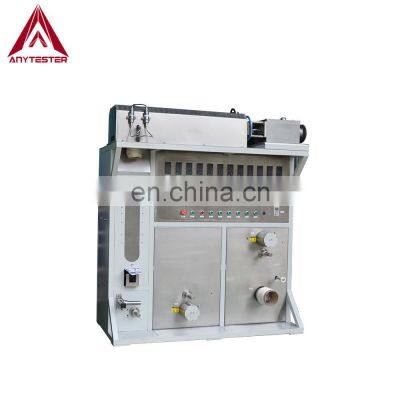

ApplicationFiber Melt Spinning SystemAT227 Fiber Melt Spinning System is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling. It is specially designed for small batch production test to simulate the field production.Features★ Spin heads is two pieces and has the following characteristics:It is able to produce mono and bi componentSpin heads is equipped with external insulation, ceramic heater and stainless steel protective coverThe heads is made up of high chromium alloy steel.Spin heads heating is adjustable up to 450 °C.Spin pack aperture diameter is minimum 70 mm.★ Melt Pumps specifications is at least as follows.At least two melt pumps is supplied with the deviceCore and sheath capacity is minimum 1.0 cc/rev for eachMelt pump feed range is between 0.5 - 4.0 cc/ rev. or wider rangePower of melt pumps is minimum 0.35 kW and controlled by minimum 1024 PPR encoderMelt Pump Motor Controls is provided with Variable Frequency AC Inverters.★ The heating ring have the following characteristics.Heating is at least 1 kW.Length is minimum125 mm for each sector.★ The Filament cooling cabinet have the following characteristics.The speed and the temperature of the air in the cabinet is controllableThe width of the air flow is at least 400 mm.Blow air height is at least 1000 mm.The depth of the air flow is at least 200 mm.The air velocity is adjustable between 0.25 - 0.75 m/sec or wider range.The air supply is centrifugal blower type.★ Spin Finish Application system have at least the following features.Ceramic guides is adjustable in and out.Applicator is in two positions and is ceramic nozzles (Total two nozzles).The output capacity is at least 2 x 0.025cc/rev.The speed is adjustable up to 30 rpm or higher.Tank Capacity is 5 liters.★ Pull Station features is as follows.Induction heated supply coil, draw rollers and rest coil is provided.Temperature is controlled by a microprocessor unit.The coil diameter is at least 125 mm.The length of the bobbin is at least 150 mm.The coil temperature is adjustable up tominimum of 225 °C.The speed of the coils is adjustable from 500 m/min to 2500 m/min or wider rangeAll coils is ceramic coated.★ Air barrier device is at least as follows;Each thread in the system is pass through the air scanning nozzle.The system is positioned on the line before the winder after the last gauge.★ Fiber Spin extruder line control system should have the following specifications.All parameters is controlled by the system computer and all parameters (Temperature, Pressure, Speed, Data storage and Recipes)is displayed on the screen.★ Hand Aspirator gun have the following specifications;Yarn Speed is set up to 2500 m/min. or higherThe denier range is total 1000 denier or higherAir Pressure is minimum 6 barAir Consumption at 6 bar is maximum 250 Nm3/hour.★ Overall Device specifications is at least as follows;The device must be suitable for working with thermoplastic polymers.The temperature in the extrusion system is adjustable up to at least 450°C.The device is able to produce FDY yarn type.There is one thread line.Is able to produce Sheath core type for component yarn system.Is able to produce Mono component in the yarnThe denier of the yarn produced is between 1 to10 for each filament.The line speed of the system is set up to at least 2500m/min.The melting capacity of each extruder (Extruder A and B) is at least 1kg/h★ The system winder unit is as follows:The system have an aluminum lattice structure.The coil holder is single cubic and is at least 90x100x300 mm.The holder cartridge diameter for the bobbin is at least 300 mm.Machine have a Pneumatic contact pressure systemThe traverse stroke in the system is 250 mm.At the end of the system there is a device for yarn transfer.The system speed range is set between 1000 - 2500 m/min. or widerThe system denier range is between 50 - 500 dtex or wider.★ A closed-circuit refrigeration unit with at least 4.0 kWTogether with the system, a tool kit and a calibration set including Infrared Temperature sensor, Tachometer, Air flowmeter, Stroboscope and other essential tools is provided.★ The system should be suitable for working with the following polymers.Polyolefins, Polypropylene, Polyethylene, PO co.Resorbable Polymers (Biomedical): PGA Poly glycolic acid, PLLA poly lactic acid, PHB polyhydroxybuteratePerformance Polymers:PET polyethyleneterephthalate,PBTpolybutyleneterephthalte, PA polyamide, TPU polyurethanes, TPE thermoplastic elastomersSustainable resins:S-Polyamides,PLA, PDLA ,PHA poly hydroxyalkanoate, S-PETEngineering Polymers: PPSU Polyphenylenesulphide, PEI Polyether imide, PEEK Polyetherether ketone, ABS, PC PolycarbonateHalogenated Polymers: PVdCpolyvinyledene chloride, CTFE Chlorotetraflouroethylene PVDFPolyyinyledene fluoride, PVDCTechnical specificationModelAT227AT227 Melt spinning deviceHeating power of extruding screw3kwScrew dia25mmTemperature rangeRT~320℃Temperature accuracy±0.5℃Pressure sensor accuracy0.1NMelt pump max. Temperature400℃ Flow of melt pump2.4cc/revSpinneret plate24 holes, hole dia.: 0.1mm Outer diameter: 90mm Material: 316L stainless steelWinding systemSpeed range of oil roller300-1000m/minHot roller temperature range70~200℃Hot roller dia.125mmWinding head speed range300-1000m/minding dia.320mmDrive system Drive motor of melt pump320wDrive motor of extruding screw2.2kwDrive motor of hot roller450wDrive motor of oiling system450wTemperature controlTemperature control accuracy±0.5°CMelt pressure sensor accuracy0.1NMaterial of gas line304 stainless steelPower supplyAC220V, 50HzOur CompanyPacking & DeliveryPakegingpakeging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.Contacting Us
>>
