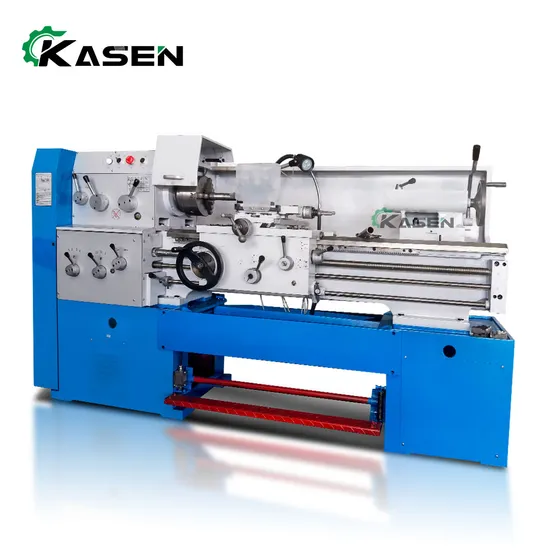

C6150 China Cheap Horizontal Manual Lathe Machine (Lathe Machinery)

Product Description

C6150 China Cheap Horizontal Manual Lathe Machine (Lathe Machinery) Product Description

Features :Rail width is 360mmThread processing need to change gearsTool size is 20x20mmGears is steel of precision grinding and hardenedStandard AccessoriesHook wrenchInner hexagon spannerSingle-ended wrenchSocket wrench3-jaw chuckDead centerCenter sleeveTriangular beltAdjustment pad ironFoundation boltsChange gearsOptional AccessoriesSteady Rest,Follow restDROChuck cover ,Tool post cover ,Lead screw coverFoot brakeFast movingLive center4 jaw chuckDrill chuck and holderFace plateQuick change tool postTaper turning attachment

SPECIFICATIONS:

SPECIFICATIONS	Units	C6150
Swing over bed	mm	500
Swing over cross slide	mm	330
Swing over gap	mm	-
Distance between centers	mm	750/1000/1500/2000/3000
Spindle bore	mm	52(Optional:80)
Spindle bore taper	-	MT6(Optional:Metric 1:20)
Spindle speed steps	-	9
Spindle speed range	rpm	40-1400
Cross slide travel	mm	250
Top tool post travel	mm	95
Tool size	mm	20 x 20
Longitudinal feeds range	mm/r	0.0832-4.6569
Cross feeds range	mm/r	0.048-2.688
Kinds of metric threads	kinds	19
Range of metric threads	mm	0.25-14
Kinds of inch threads	kinds	28
Range of inch threads	T.P.I.	2-40
Kinds of threads module	kinds	17
Range of threads module	MP	0.25-3.5
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	130
Main motor power	kw	5.5
Coolant pump motor	kw	0.09
Weight for 750	kg	1250
Weight for 1000	kg	1350
Weight for 1500	kg	1550
Weight for 2000	kg	1750
Weight for 3000	kg	1950
Dimension for 750	mm	2200x1140x1800
Dimension for 1000	mm	2400x1140x1800
Dimension for 1500	mm	2900x1140x1800
Dimension for 2000	mm	3400x1140x1800
Dimension for 3000	mm	4400x1140x1800

Detailed Photos


we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost


FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
