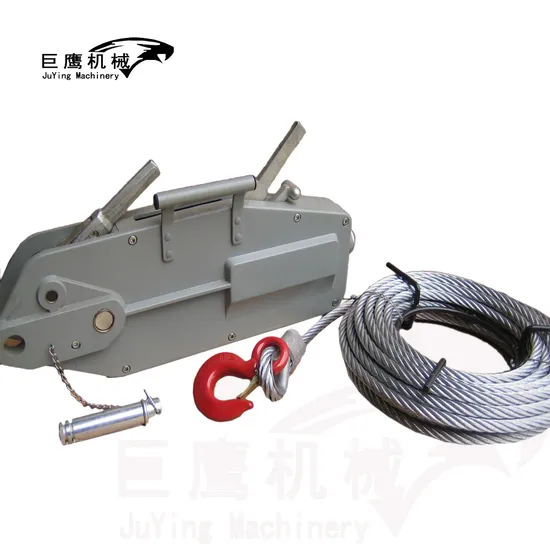

1.6ton 20m Wire Rope Puller Hand Cable Pulling Winch

Product Description

Product Description

The wire rope pulling winch is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.

The principle function of the wire rope pulling winch is that the rope passes through mechanical jaws rather than being reeled on a drum of a puller or conventional winch.
The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.
A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.
This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.The load is held securely at all times.

Product Parameters

Model	Capacity(ton)	Rated before Stroke	Handles Effective Length(mm)	Level	Wire Rope Dia	Wire Rope Length(mm)	Weight(kg)	Package size(mm)
PH-0.8	0.8	>/52	825	1	8	</284	6	428*64*235
PH-1.6	1.6	>/55	1200	1	11	</412	12	545*97*286
PH-3.2	3.2	>/28	1200	2	16	</441	23	660*116*350
PH-5.4	5.4	>/30	1200	2	20	</745	45	800*180*500

Detailed Photos

Packaging & Shipping

---
