US$950.00-1,300.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Max. Drilling Capacity
32mm
Transport Package
Standard Plywood Package
Production Capacity
50 Sets/ Month

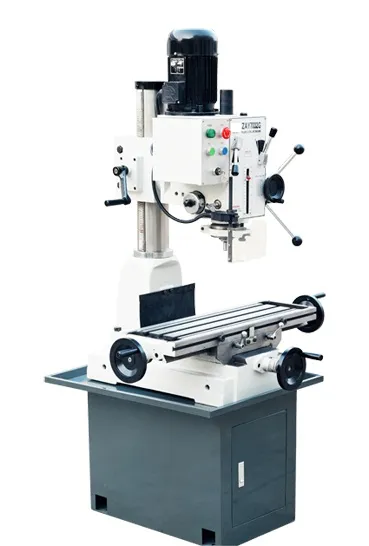

Product Description
Feature
CE high preision Drilling and Milling machine
High strength column
Good strength gear griding ,low nose
Head stock tilts left and right
Wide electrical box,easy operation
High presion manual feeder
Depth ruler,easy operation and read
Main specification
| MAIN SPECIFCATIONS | ZX32G |
| Max.Drilling capacity | 32mm |
| Max.tapping capacity | 16mm |
| Max.face milling capacity | 63mm |
| Spindle taper | MT3/R8 |
| Table size | 400×190mm |
| X-axis travel | 190mm |
| Y-axis travel | 320mm |
| Z-axis travel | 310mm |
| Spindle stroke | 75mm |
| T-slot size | 12mm |
| Spindle speed | 60-1650rpm |
| Headstock tilt left and right | 90° |
| Column size | 150×130×690mm |
| Stand size | 550×340mm |
| Distance from spindle center to column | 320mm |
| Max distance from spindle to table | 400mm |
| Motor power | 220V/380V-750W |
| NW/GW | 170kgs/200kgs |
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
>>
