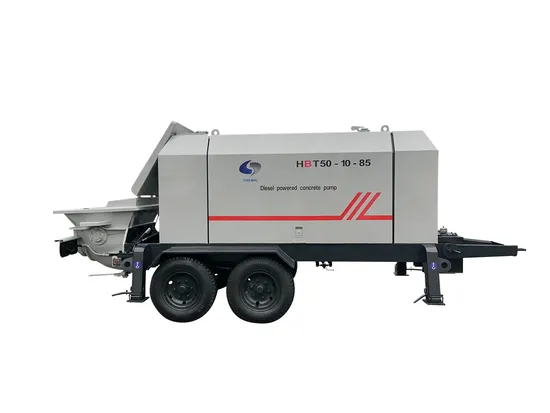

Hbt60 Hot Sale Construction Diesel Engine Concrete Pump for Floor Screed

Product Description

Main Technical Parameter
Model		HBT40R/1010S
Max. Theoretic Delivery Capacity		40m3/h
Max. Theoretic Delivery Pressure		10 MPa
Concrete Cylinder( Bore× Stroke)		150×1000 mm
Type of Distributing Valve		S Valve
Feeding Hopper Capacity		400 L
Feeding Height		1150 mm
Diameter of Discharging Gate		Φ125 mm
Diameter of Delivery Pipe		Φ125 mm
Power		70 kW
Power Type		DEUTZ Diesel Engine
Brand of Main Oil Pump		Japanese Kawasaki
Main Cylinder( Bore× Stroke)		110×1000 mm
Capacity of Hydraulic Oil Tank		500 L
Max. Aggregate Size(Pebble/Gravel)		40 mm / 30 mm
Rated Delivery Distance	Vertical	100 m
	Horizontal	200 m
Total Weight		4200 kg
Overal Dimension (L×W×H) mm		4500×1900×2000

Production workshop
Factory warehouse and semi-finished products area
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5.What about TOBEMAC service?
1). Offer all relative material for customer to know and better use the machine.
2). Periodically after service follow up, offer any necessary support if needed.
3).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after 1200 working hours(whichever comes first).
4).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
5).The warranty is valid on the condition of all the terms listed in the contract was observed.

Certification:Our service 1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
Contact with us! Mr.LEO ZHAO ----------------------------------------------
HANGZHOU TOB ENGINEERING MACHINERY CO.,LTD.
ADD: HUTANG INDUSTRIAL PARK ,DACIYAN TOWN,JIANDE CITY,ZHEJIANG PROVINCE,CHINA

---
