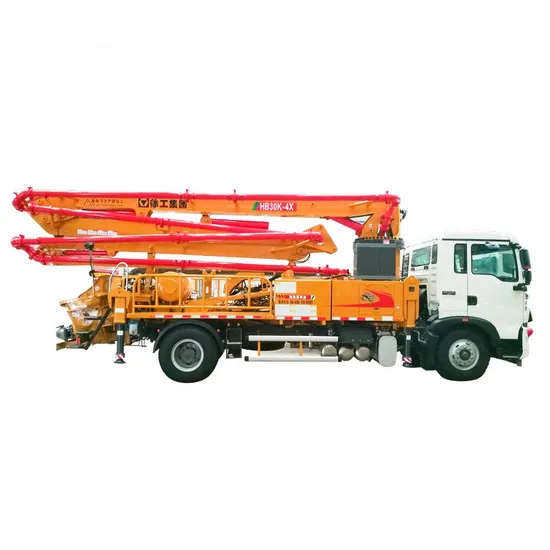

21-32m Truck Mounted Concrete Boom Pump for Sale

Product Description

Concrete Pump Truck Mounted Pump For Sale Introduction
1.The closed free fluid power system formed by double pump confluence has the features of large output, small depreciation and smooth
commutation with no impact.
2.The intelligent control system makes the driving oil flow incessantly and directly into the driving oil cylinder without any loss.
3.As there are no fussy middle commutation control valves, the commutation impact is reduced and excessively high oil temperature is avoided.
Meanwhile, it makes maintenance easier.
4.Compared with the open system with a large oil tank, the closed system needs a small oil tank. The oil in the tank flows gently, which reduces
the chance of emulsification.
5.The unique buffering technology can lower the system's high-pressure peak value. Even at the time of high output, the distributing boom
vibrates little and the tail pipe remains stable.
6.The concrete output can be regulated through the electronic proportional variable adjustment according to your actual needs.
1.Reach height: 52m
2.Dimension:11180*2500*3990mm

Travel
Category	Item	Unit	Parameter
Chassis	Model		SATMCP
	Max. speed	km/h	90
	Max. gradeability		38%
	Min. turning diameter	m	27.4
	Brake distance	m	≤10
	Wheelbase	mm	1995+5205+1370+1450
	Tread (front/rear)	mm	2028/1872
	Approach angle/departure angle	.	18/12
	Min. clearance	mm	270
	Tyre specification		12.00R20
Engine	Model		D13
	Output power	kw/(r/min)	324/1400~1800
	Max. torque	N.m/(r/min)	2200/1050~1400
	Displacement	l	12.8
	Emission Standard		Nation III GB
Others	Dimension (Length×Width×Height)	mm	14665×2500×3990
	Total vehicle weight	kg	47000
	Fuel tank capacity	l	410
	Fuel consumption per 100km	l/100km	50
Pumping operation
Pumping system	Theoretical output(high pressure/low pressure)	m3/h	90/138
	Concrete pumping pressure(high pressure/low pressure)	Mpa	13/8.7
	Theoretical pumping times(high pressure/low pressure)	/min	18/27
	Max. diameter of pumping concrete aggregate		40
	Feeding height		1450
Placing boom	Pumping slump range		12-23
	Reach height		51.5
	Reach depth		40
	Slewing radius		47.5
	Slewing angle		364
	1st boom stretch angle		96
	2nd boom stretch angle		180
	3rd boom stretch angle		180
	4th boom stretch angle		180
	5th boom stretch angle		260
	Outrigger spanOverall outrigger span		11020±50
	Front outrigger transverse span		10730±50
	Rear outrigger transverse span		10430±50
Others	Dosing type		S valve
	Lubricating method		Automatic lubrication
	Controlling method		Manual/remote control
	Water tank capacity		650
	Max. pressure of water pump		2

---
