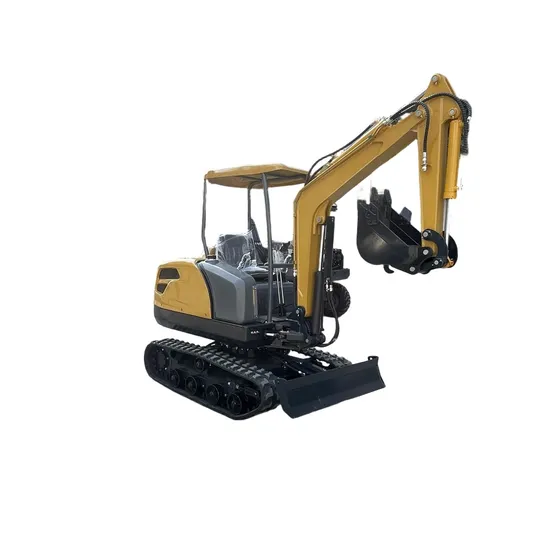

2-Ton All Terrain Crawler Excavator Hydraulic Mini Excavator off-Road Mini Excavator

Product Description

Product Parameters

Model		Unit	JM20 Off-road	JM20 without tail	JM22 Cross Country	JM22	JM25 Off-road	JM25	JM25 without tail
Performance Parameters
Operating weight		kg	1950	1950	1950	1,950	2200	2200	2200
Canopy/Cabin Awning/Driver's Cab			Canopy	Canopy	Canopy	Canopy	Cabin	Cabin	Cabin
Bucket	Capacity	m3	0.06	0.06	0.06	0.06	0.06	0.06	0.06
	Width	mm	400	400	400	400	400	400	400
	Max. digging force	kN	12	12	12	12	12	12	12
Arm digging force		kN	5	5	5	5	5	5	5
Engine	Brand/Model		Laidong LL385	Laidong LL385	Laidong LL385	1703	Laidong LL385	1703	Laidong LL385
	Rated power/speed	kW/rpm	22.1KW/2200RPM	22.1KW/2200RPM	22.1KW/2200RPM	18.2KW/2200rpm	22.1KW/2200RPM	18.2KW/2200rpm	22.1KW/2200RPM
	Displacement	lt	1.617	1.617	1.617	1.7	1.617	1.7	1.617
Main Pump	Brand		Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin	Walking in Tianjin
	Pump type		12/12 gear pump	12/12/04 Gear Pump	12/12 gear pump	12/12/04 Gear Pump	12/12 gear pump	12/12/04 Gear Pump	12/12 gear pump
	Flow rate	lt/min	24/24	24/24	24/24	24/24	24/24	24/24	24/24
Motors	Swing motor	cc	Liton 400	Liton 400	Liton 400	Liton 400CC	Liton 400	Liton 400	Liton 400
	Traveling motor	cc	200	200	200	200	200	200	200
Running speed (high/low)		km/h	2.8	2.8	2.8	2.8	2.8	2.8	2.8
Max. traction		kN	12	12	12	12	12	12	12
Ground pressure		kPa	23	23	23	23	twenty four	24	23
Gradeability		°	30	30	30	30	30	30	30
Fuel tank capacity		lt	30	45	30	30	36	36	30
Hydraulic oil tank capacity		lt	30	30	30	30	40	40	30
Boom deflection (left/right)		°	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31	Left 58 Right 31
Slewing speed		r/min	10	10	10	10	10	10	10
Swing radius (minimum)		mm	2100	2100	2100	2,100	2100	2100	2100
Scope of Work
Max. digging heightMaximum digging height		mm	3200	3200	3200	3,200	3200	3200	3200
Max. dumping heightMaximum dumping height		mm	2200	2200	2200	2,200	2200	2200	2200
Max. digging depth		mm	2000	2000	2000	2,000	2000	2000	2000
Max. vertical digging depth		mm	2000	2000	2000	2,000	2000	2000	2000
Max. digging radius		mm	3800	3600	3800	3,800	3800	3800	3800
Dozer blade (Length*Width)		mm	1300*300	1300*300	1300*300	1300*300	1300*300	1300*300	1300*300
Max. lift height of the dozer blade		mm	210	210	210	210	210	210	210
Max. digging depth of the dozer blade		mm	150	150	150	150	150	150	150
Outline Dimensions
Overall Dimension (LxWxH)		mm	3300X1300X2300	3100X1300X2350	3300X1300X2300	3300X1300X2300	3,400x1300x2400	3,400x1300x2400	3300X1300X2400
Total track length		mm	1890	1890	1890	1,890	1890	1890	1890
Wheel tread		mm	1040	1040	1040	1040	1040	1040	1040
Platform tail slewing radius Platform tail slewing radius		mm	1150	950	1150	1150	1270	1270	1150
Platform ground clearance		mm	810	900	810	810	810	810	810
Chassis ground clearance		mm	260	260	260	260	260	260	240
Chassis width		mm	1300	1300	1300	1300	1300	1300	1300
Track width		mm	245	245	245	245	245	245	23
Track height		mm	490	490	490	490	490	490	450

Detailed Photos
Our off-road excavators Special chassis design: using wide track or all-terrain tires to reduce ground pressure and prevent falling into soft ground (such as swamps, deserts, mud, etc.), and equipped with an adjustable suspension system to adapt to rough terrain.
Our off-road excavators Four-wheel drive/all-wheel steering: Enhanced traction and handling for stable operation even on tilted or slippery surfaces.
Our off-road excavators High passability: high ground clearance, large approach/departure angle design, easy to cross obstacles (such as rocks, roots, steep slopes, etc.).
Our off-road excavators Center of gravity optimization design: Low center of gravity structure combined with dynamic balance technology significantly reduces the risk of rollover. Product Description
Our all-terrain off-road excavators have strong terrain adaptability, efficient operating performance, good safety and stability, durability and low maintenance requirements, a wide range of application scenarios, and one machine for multiple uses: multiple functions can be achieved by replacing accessories, reducing the number of equipment purchases.
High attendance rate: strong adaptability, reducing downtime caused by terrain problems, and improving project progress.
Long life cycle: durable design reduces long-term maintenance costs and extends the service life of equipment. Disaster rescue: quickly enter the disaster area after earthquakes and floods to clear obstacles and implement rescue.
Mines and quarries: efficient mining and transportation in steep and gravel terrain.
Forestry and agriculture: clear fallen trees, reclaim wasteland, and adapt to muddy roads in forests.
exploration: perform engineering tasks in unmanned areas or extreme environments. Anti-corrosion materials: key components are made of high-strength steel and anti-rust coating to adapt to harsh environments such as humidity and saline-alkali.
Modular design: easy to quickly replace wearing parts and reduce downtime.
Long-lasting filtration system: Multiple filtration of air, fuel and hydraulic oil protects the service life of the engine in a dusty environment. High-power engine: Equipped with a high-performance diesel engine, it provides sufficient power to ensure continuous operation in harsh environments.
Multi-functional accessory compatibility: accessories such as breakers, grabs, ripper, etc. can be quickly replaced to adapt to various tasks such as excavation, crushing, and leveling. Special chassis design: Wide tracks or all-terrain tires are used to reduce ground pressure and prevent sinking into soft ground (such as swamps, deserts, mud, etc.), and an adjustable suspension system is also equipped to adapt to rugged terrain.
High passability: High ground clearance, large approach angle/departure angle design, easily crossing obstacles (such as rocks, tree roots, steep slopes, etc.).Four-wheel drive/all-wheel steering: Enhanced traction and controllability, stable operation even on inclined or slippery roads.
Applications
Our excavators are multi-functional: they can achieve multiple functions by replacing attachments, reducing the number of equipment purchased.
Company Profile
Packaging & Shipping
FAQ
Q:How to guarantee the quality problem?
A:We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery, absolutely eliminate defective products.
Q:Why choose us?
A:In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.
Q: How long is your delivery time?
A:In the case of stock, it is usually 2-5 days. Others calculate the time according to the quantity of your order.
Q:How do I receive the goods?
A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc.Please provide detailed address, we can also provide door-to-door service for you.
Q:How do I pay?
A: We accept 30% T/T in advance , balance before shippment. If you have other needs, you can also contact us.

---
