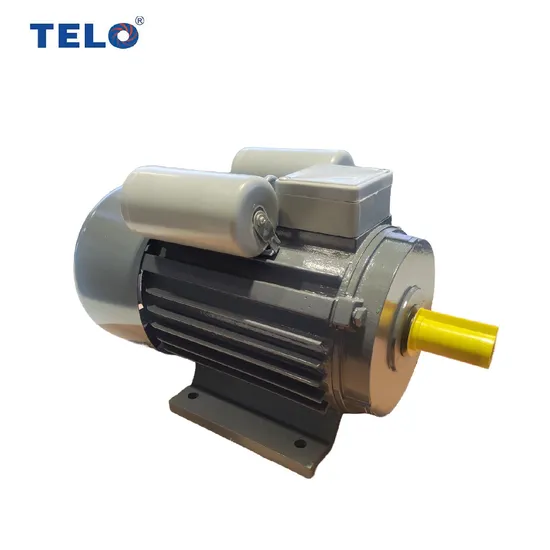

Telo 1.1kw 1.5HP 4poles Yc90L-4 Single Phase Asynchronous Motors for Air Compressors

Product Description

Product Description
Telo 1.1kw 1.5HP 4Poles YC90L-4 Single Phase Asynchronous Motors for Air compressors
Usage: Air compressors, refrigerators, medical equipment and other machine tools.
Features: High starting torque, low energy consumption.Cast iron and cast aluminum frames.The rated voltage of the basic type is 220V/50Hz.Can be equipped with 110V/220v, 110V, 240V, 60Hz.

Description	Standard
Type	Squirrel cage, Totally Enclosed Fan Cooled, TEFC, Induction motor
Power Rating	0.37 to 7.5 kW; 2,4 Poles
Efficiency	IE2
Frame size	80 to 132 mm
Frame materials	cast iron body
Enclosure	IP 54 or IP 55
Insulation class	Class F (optional: Class H)
Frequency	50Hz/60Hz
Direction of rotation	Bi-directional
Terminal box	Top
Ambient temp.	-15ºC to +40ºC
Altitude	Below 1000m sea level
Performance Duty	S1, continuous duty, standard

INSTALLATION SIZE
TECHNICAL PARAMETER

Application
Company Profile
Certifications
Our Advantages
FAQ
1. Are you a manufacturer or trading company?
Manufacturer and we have focused on developing and producing electric motors for more than 20 years. Welcome to visit us at your convenience or during your business trip to China
2. ls a customized service available?
Of course, OEM & ODM both are available.
3. What certificates do you have? CE, CCC, ISO9001, etc
4. Can you supply a sample for testing market? Yes, we are a professional manufacturer and can accept samples and small orders.
5. What is your delivery time? It refers to the specific products. Usually, we deliver the motors in 10-45 days, please get in touch with us for details.
6. Payment terms? T/T, L/C at sight, Western Union, etc.
7. Can mix different models in one container? It's ok, we will calculate the space and give suggestions.
8. How does your factory do regarding quality control?
Quality is of the first importance and we always pay high attention to quality control from the beginning to the end of the production. Each product is completely assembled and carefully tested before packaging and shipping
Feel free to contact us!^_^~

---
