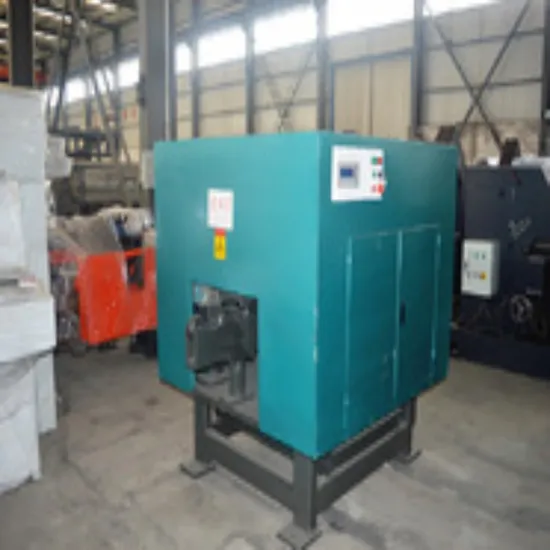

CNC Angle Steel Heel Cleaning Machine with High Speed

Product Description

Product Description
Applicable Industry:
The machine used for angle bank milling, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature:
By installing special cutter of a few cutting blade , high speed milling and high efficiency, surface roughness is good, one time molding process. According to request it can do a single-stage and continuous cutting. Operation of this machine is simple, reduced operational requirements of workers. Machine with high degree automation, can achieve a continuous, intermittent feeding, effectively improve work efficiency; process one size L180 × 180 × 18 length 800mm angle, for about 2-3 minutes, one worker can operate two machine together. Simple operation, flexible adjustment and stable operation. Multi -purpose machine, can complete continuous feed and cutting length. With touch-screen operator interface.

Product Parameters

Model	SQC200	SQC250
Total power	10KW	12KW
Single-spindle power	4KW	5.5KW
Power supply	380V,50Hz	380V,50Hz
Air supply	0.6MPa~0.7MPa	0.6MPa~0.8MPa
Cutting Speed	150~400rpm	0~400rpm
Diameter of cutting plate	100mm	200mm
Feeding speed	100~450mm	0~450mm/min
Rotation of spindle	450rpm	360rpm
Quantity axis	2	2
Quantity feeding motor	2	2
Adjustment motor of cutting amount	1(Servo or stepper motor)	1(Servo or stepper motor)
Quantity pressure cylinder	4	4
Angle processing size	L50~L200	L63~L250
Length of angle	280mm~+∞ (Processing length unlimited)	330mm~+∞ (Processing length unlimited)
Operation mode(Data input)	Touch screen (with compensation function)

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing.
We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.
Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.

---
