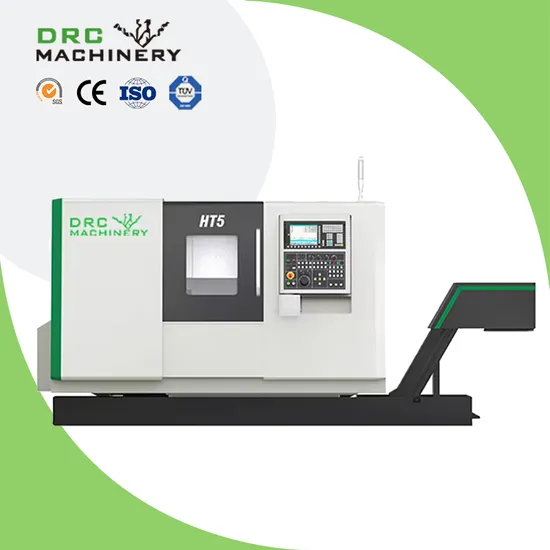

German Twin Double Multi Spindle CNC Lathe Ht5 Fanuc Heavy Cutting Turning Lathe Turning Center

Product Description

Cnc Slant Bed Turning Lathe Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal
high-speed
cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts
for efficient, high-volume, high-precision processing.
Overall: The machine tool has a mechanical, electrical, and hydraulic integrated layout. The 45° overall slant bed has the advantages
of compact structure, high rigidity, smooth chip removal, and convenient operation. The guide rail type is a rolling guide rail, and the
driving parts are high-speed silent ball screws. It has the advantages of fast speed, less heat, and high positioning accuracy; the
machine tool is fully enclosed protection, automatic chip removal, automatic lubrication, automatic cooling.
Spindle: The main drive unit of this machine tool is driven by Japanese FANUC 15/18.5kw high-performance servo motor, which
drives the spindle to rotate through a pair of pulleys. The spindle speed range is 30-4000r/min. The front support of the main shaft
adopts two high-precision angular contact ball bearings, and the rear support adopts two high-precision angular contact ball
bearings with large apertures to meet the bearing requirements of axial and radial cutting forces. Product Parameters

Technical date
Spindle head		FL 170 h5
Spindle maximum speed	rpm	4000
Max. Torque	N×m	256
Spindle power	Kw	15-18.5
Chuck diameter	mm	250
Spindle bore	mm	87
Front bearing diameter	mm	130
Spindle bearing lubrication		Grease
Linear motion lubrication		Oil
Speed range	rpm	5-4000
Work area
Maximum swing over bed	mm	670
Maximum cutting diameter	mm	400
Maximum cutting length	mm	550
Maximum bar capacity	mm	65
Travel of Z-axis	mm	600
Travel of X-axis	mm	267
Ball screw
X/Z axis ballscrew DxP	mm	40 x 10
Feed
Rapid traverse Z	m/min	30
Rapid traverse X	m/min	30
Feed force
Feed force X/Z	N m	7500
Number of axis		2
Measuring system
X/Z axis measuring system		Absolute rotative
X / Z);VDI/DGQ 3441 Positioning	mm	0.008/0.01
(X / Z);VDI/DGQ 3441 Repeatability	mm	0.005/0.008
Tailstock
Travel of tailstock	mm	500
Tailstock moving
Max. pressure for tailstock	N	8000
Tailstock centre sleeve		MT 5
Tool attachments
Servo turret		SAUTER
No. of tool stations tools	#	12
OD tool size	mm	25,Ø40
Electrical specifications
Voltage	V	380 ±10%
Frequency	Hz	50 ± 1%
Max. installed power	KVA	35
400v lie protection fuses	A	63
Connection cables section	mm2	4 x 10
Hydraulic unit
Max. working pressure	bar	50
Reservoir capacity	l	35
Pump flow	I/ in	24
Coolant system
Capacity with tank	l	180
Pump delivery	l /min	30
Pump pressure	bar	5
Noise level
Less than	dB (A)	≤80
Control system
FANUC	-	0iTF plus
Net weight	kg	5500
Slant angle, Material	-	45°,

HT5MY Fanuc Inclined Bed Turning and Milling Complex Center 4-Axis Turning Cente
Machine Description HT5MY CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine machine
-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table
is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient.
Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise,
high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no
cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off.
The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient
maintenance.

---
