Product Details
Product Description

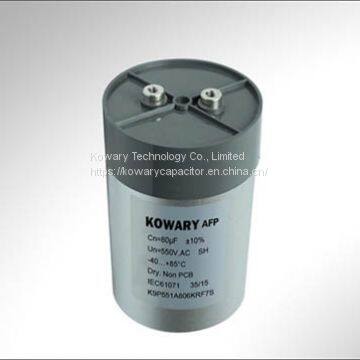

Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Aluminum case
Output Threaded insert M5 or M6, bolt available
Dissipation factor ≤2.0×10-3 Measured at 100 Hz and 20±5℃
Life expectancy 100,000 hours at Urms and 70 ℃(Hot-spot temperature)
Dielectric strength 1.5×Urms applied to 10s at 20±5 ℃
Test voltage terminal to case 3.5KVAC/50Hz for 10s
Insulation resistance(IR*CN) ≥ 10000s but need not exceed 30GΩ, after 1 minute of electrification at 100VDC (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
| Capacitance
(μF)
| Dimension
| Imax @ 45℃ @10KHz (A)
| ESR @1.0KHz (mΩ)
| Rth
(K/W)
| Weight
(Kg)
|
D
| H
| P
|
Urms 330Vac, Upeak 466V
|
K9P331A476KR###****
| 47
| 60.0
| 70.0
| 28.6
| 25
| 2.7
| 7.5
| 0.3
|
K9P331A906KR###***
| 90
| 60.0
| 120.0
| 28.6
| 40
| 1.5
| 4.6
| 0.5
|
K9P331A107KR###***
| 100
| 86.0
| 70.0
| 32.0
| 40
| 1.4
| 5.3
| 0.6
|
K9P331A207KR###***
| 200
| 86.0
| 124.0
| 32.0
| 65
| 0.8
| 3.3
| 1.0
|
K9P331A257KR###***
| 250
| 86.0
| 144.0
| 32.0
| 65
| 0.9
| 2.9
| 1.1
|
K9P331A357KR###***
| 350
| 116.0
| 128.0
| 50.0
| 80
| 0.5
| 2.4
| 1.9
|
K9P331A407KR###***
| 400
| 116.0
| 128.0
| 50.0
| 80
| 0.5
| 2.4
| 1.8
|
K9P331A477KR###***
| 470
| 116.0
| 148.0
| 50.0
| 80
| 0.6
| 2.1
| 2.1
|
Urms 550Vac, Upeak 777V
|
K9P551A406KR###***
| 40
| 86.0
| 70.0
| 32.0
| 40
| 2.3
| 5.3
| 0.5
|
K9P551A506KR###***
| 50
| 86.0
| 80.0
| 32.0
| 40
| 2.5
| 4.8
| 0.6
|
K9P551A806KR###***
| 80
| 86.0
| 124.0
| 32.0
| 60
| 1.3
| 3.3
| 0.9
|
K9P551A107KR###***
| 100
| 86.0
| 144.0
| 32.0
| 60
| 1.4
| 2.9
| 1.1
|
K9P551A157KR###***
| 150
| 116.0
| 128.0
| 50.0
| 75
| 0.9
| 2.4
| 1.8
|
K9P551A227KR###***
| 220
| 116.0
| 178.0
| 50.0
| 80
| 0.7
| 1.7
| 2.5
|
Urms 850Vac, Upeak 1200V
|
K9P851A146KR###***
| 14
| 86.0
| 70.0
| 32.0
| 40
| 2.0
| 5.3
| 0.5
|
K9P851A306KR###***
| 30
| 116.0
| 120.0
| 32.0
| 40
| 3.3
| 3.5
| 0.9
|
K9P851A556KR###***
| 55
| 116.0
| 124.0
| 50.0
| 50
| 2.0
| 2.5
| 1.7
|
K9P851A606KR###***
| 60
| 86.0
| 226.0
| 32.0
| 65
| 1.8
| 1.8
| 1.6
|
K9P851A117KR###***
| 110
| 116.0
| 228.0
| 50.0
| 75
| 1.2
| 1.3
| 3.0
|
K9P851A167KR###***
| 160
| 136.0
| 230.0
| 50.0
| 80
| 0.9
| 1.1
| 4.1
|
Urms 1400Vac, Upeak 1980V
|
K9P142A905KR###***
| 9
| 86.0
| 124.0
| 32.0
| 40
| 2.5
| 3.3
| 0.9
|
K9P142A116KR###***
| 11
| 86.0
| 144.0
| 32.0
| 40
| 2.9
| 2.9
| 1.1
|
K9P142A206KR###***
| 20
| 86.0
| 225.0
| 32.0
| 45
| 4.2
| 1.8
| 1.6
|
K9P142A226KR###***
| 22
| 116.0
| 148.0
| 50.0
| 60
| 1.5
| 2.1
| 2.0
|
K9P142A396KR###***
| 39
| 116.0
| 228.0
| 50.0
| 60
| 2.2
| 1.3
| 2.9
|
K9P142A556KR###***
| 55
| 136.0
| 230.0
| 50.0
| 70
| 1.7
| 1.1
| 3.9
|
Remark: 1. ### Output, output size, and installation method; *** Internal code.
2. Customization for special specification and requirement is available.
>>
