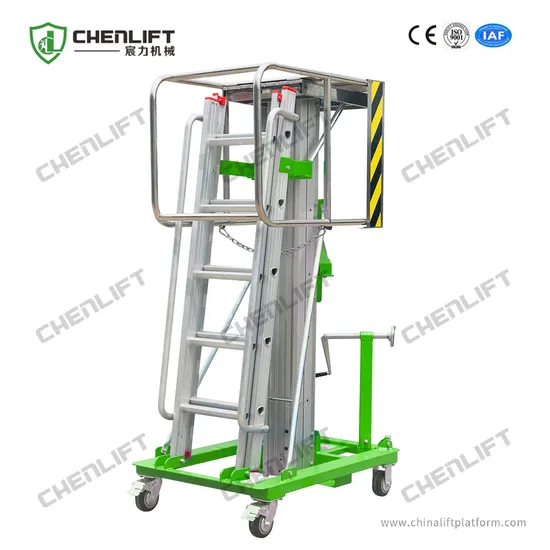

3.2m Manual Winch Elevating Lift Table with 125kg Load Capacity

Product Description

3.2m Manual Winch Elevating Lift Table with 125kg Load Capacity

An economical alternative to electro-hydraulic lifts, this Manual Winch Elevating Work Platform is simple to use and maintain. The lift is quickly elevated to the desired working height with a hand crank winch and then the user climbs a ladder to the platform. Built in safety features include a friction brake on the winch and outriggers that can be placed in an X pattern or rectangular. In addition, in case the cable is cut or snaps, a spring loaded mechanical stop engages as soon as tension is released from the cable, preventing a vertical drop.
The Manual Winch Elevating Work Platform is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable. Designed to be handled and operated by one worker, it rolls easily from job to job and rolls easily through a standard doorway.
Specification

Model	SP32	SP46
Platform Height	3200 mm	4600mm
Platform Size	550*600 mm	550*600 mm
Load Capacity	125 kg	125 kg
Stowed Length	1200 mm	1300 mm
Stowed Width	750 mm	800 mm
Stowed Height	1980 mm	2070 mm
Ground Clearance	70 mm	70 mm
Machine Weight	145 kg	190 kg
Operation Mode	Manual	Manual
Move Mode	Push by manpower	Push by manpower
Casters	6 in	6 in

Highlight Exclusive built manual hand winch features heavy duty brake Large 550*600mm skid-resistant platform with toe boards and tubular guardrails Smooth rolling 6 in casters for easy movement Compact design allows easy movement of the unit through standard doorways
