US$2,500.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Applicable Material
Metal, Plastics
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
Fiber Laser
Laser Classification
Free Electron Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Marking Line Width
0.01-0.2mm
Power Consumption
Less Power Consumption
Design
Unique Integrated Fully Integrated Design
Laser Marking Header
Marking Speed
Software
Special Laser Printing Software
Name
Fiber Laser Marking Machine
Transport Package
Wooden Case Packaging
Specification
995mm*640mm*715mm
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
100.00cm * 65.00cm * 72.00cm
Package Gross Weight
70.000kg
Product Description
Product Description

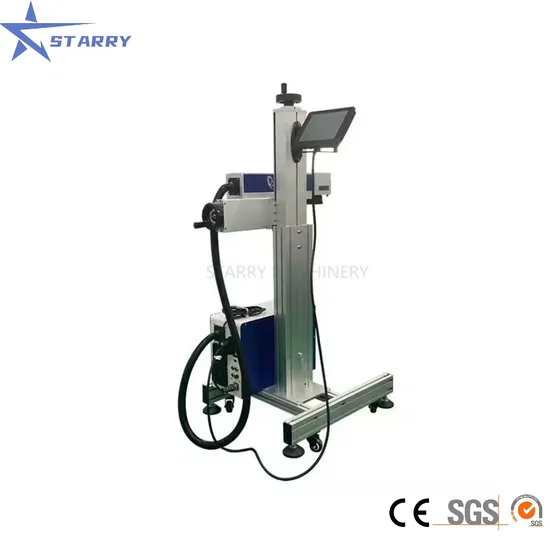

Performance characteristics:
(1) the equipment is small in size, easy to install, no maintenance, less power consumption.
Unique integrated fully integrated design, optical, electronic, and mechanical devices are highly integrated.
(2) the high-speed galvanometer laser marking header, marking speed, with a high quality beam,
long service life, installation characteristics of flexible and convenient maintenance and so on.
(3) special laser printing software, simple operation, no poison, no pollution, high stability, low failure rate.
Can meet the needs of more than most of the various types of production line.
Product Parameters
| Laser output power | 10W/20W/30W/50W |
| Type | Fiber laser printing machine |
| Central emission wave length | 1064 nm |
| Cooling type | Air cooling |
| Pulse repetition rate*kHz | 20-100 |
| Net dimensions | 110mmx110mm |
| Marking line speed | ≤7000mm/s |
| Marking depth | ≤0.01mm |
| Repeat accuracy | 0.01mm |
| Marking line width | 0.01-0.2mm |
| Power source | MingWei power source |
| Laser head | Sino galvo/Ouya |
| Communication port | USB |
| Levels of protection | IP45 |
| Operation temperature | -10-55°C |
| Working life | Lasers in theory for 100 thousand hours |
Detailed Photos
Packaging & Shipping
>>
