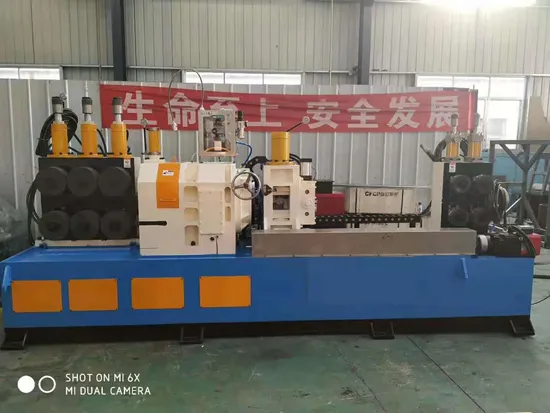

Wxc130ca Centerless Ss Bar Peeling Machine/Peeler with High Accuracy

Product Description

General Introduction
The WXC series peeling machine are special high-efficiency lathes for roughing and finishing the outer circumference of round bars/ pipes and wire rods. It removes decarburized layers, cracks and other crackers on the surface of the bars quickly and with high precision.
he models in the parameter table can be made into common types (Type B, Type C), small (CA) type and numerical control (S) typ
Strengths & Merits
1. It can process extra long rods, pipes and wires, including coil to coil, and coil to bars.
2. High efficiency: multiple blades simultaneously operate: its work efficiency is several times higher than conventional lathe.
3. High precision: diameter tolerance of finished products ≤h9, surface roughness ≤6.3 μm
4. Non-pollution: disposals can be recycled.
Parameter Table

Model		WXC130CA
Workpiece Required	Cutting range(mm)	Φ35~ Φ135X3000~unlimited
	Tensile strength σb(Mpa)	≤1100
	Surface hardness	≤HB320
	Bend(mm/m)	≤1.50
	Diameter tolerance	As per GB 702-88 group two
	Roundness	≤diameter tolerance 50%
	Surface roughness(Ra)	≤25~50mm
Finished Products	Diameter range(mm)	Φ30~Φ130
	Radius cutting depth(mm)	0. 5~2.5
	Diameter tolerance	≤IT9(standard diameter tolerance)
	Surface roughness (Ra)	≤3.2μm
	Roundness (mm)	≤0.03
Feeding speed (infinitely adjust speed m/min)		1.0~5.0(Slow down for materials with ceaseless chips, high strength and high hardness.)
Cutter head rotating speed (infinitely variable speed) (r/min)		160~900 (2 level speed gearbox)
Main motor power (kW)		90(4 electrodes)
Feeding motor power (kW)		5.5 (4 electrodes)
Clamping vehicle motor (kW)		4 (servo)
Dimensions (m) (reference)		Host machine 4X3.7X2.4
Weight (t) (reference)		Host machine 11.5
Total capacity (kW)		120
Source of compressed air (prepared by user)		0.4~0.8MPa, 2m3/min, with second grade oil and water separator

Composition Introduction
The equipment is composed of two general members: "host machine and transportation devices".
1. Host machine: host machine consists of lathe bed, spindle, oil-air lubrication system , front clamping and rear extracting systems, front guide and middle-rear guide etc.
2. Transportation devices: Transportation devices comprises loader and unloader.
3. Oil-air lubrication system: Oil-air lubrication system is specially designed for retaining effective lubricating and cooling in the process of spindle's high speed rotation. It is comprised of pump, oil air distribution block and gas source processing component.
4. Cutting liquid cooling recycling system: Cutting liquid cooling recycling system is composed of cooling water recycling pump, pipelines, nozzles etc. High pressure water pump transports cooled cutting liquid in water tank to nozzle near the cutter head through pipe. It directly sprays onto cutting blade point and chips, whereby the majority of cutting heat is taken away, and drops to discharging hole underneath the cutter head together with chips, and flows back to water tank through pipe to cool down.
5.Chip-conveyor: Chip-conveyor is an outsourced fine quality product. Chips travel through downfall hole at the bottom of cuter head and drop onto the chain plates of the conveyor and are brought out by transmission ,waiting to be collected.
6. Hydraulic pressure system: Hydraulic pressure system consists of pump electric motor, control valve, hydraulic pressure fuel tank, hydraulic pressure pipes and others. It enables to clamp and extract bars through oil cylinder within front (rear) clamping elements.
7. Electric machinery system: Electric system includes power supply and controlling system. It is composed of 1 power distributing cabinet and 1 operating button station. It fulfils the function of electric control for main transmission system, front and rear clamping feeding system, cooling system, hydraulic pressure system, chip-conveyor and transportation devices.

MODELS FOR YOUR SELECTION
.

Model	Input Dia	Length	Feeding Speed	Cutting Depth	Surface Roughness	Dia.Tolerance	Spindle Motor	Total Capacity
WXC20	ф5-ф20mm	≥1400mm	1-25m/min	0.5-2mm	Ra≤3.2	IT9	22KW	30KW
WXC40	ф5.5-ф40mm	≥1400mm	1-15m/min	0.5-2mm	Ra≤3.2	IT9	45KW	63KW
WXC60	ф13-ф75mm	≥2000mm	1-15m/min	0.5-2mm	Ra≤3.2	IT9	45KW	63KW
WXC80	ф16-ф85mm	≥2200mm	1-12m/min	0.5-3mm	Ra≤3.2	IT9	55KW/75KW	75KW/90KW
WXC100	ф25-ф110mm	≥2800mm	0.5-10m/min	1-4mm	Ra≤3.2	IT9	75KW	95KW
WXC130	ф35-ф135mm	≥3000mm	0.3-6m/min	1-5mm	Ra≤3.2	IT9	90KW	120KW
WXC160	ф45-ф170mm	≥3500mm	0.3-5m/min	1-5mm	Ra≤3.2	IT9	110KW	140KW
WXC200	ф70-ф210mm	≥4000mm	0.3-4m/min	1-5mm	Ra≤3.2	IT9	132KW	165KW
WXC250	ф95-ф260mm	≥4000mm	0.2-2.5m/min	1-5mm	Ra≤3.2	IT9	160KW	210KW
WXC350	ф150-ф360mm	≥4500mm	0.1-2m/min	1-10mm	Ra≤3.2	IT9	200KW	265KW
WXC400	ф205-ф410mm	≥4800mm	0.1-2m/min	1-10mm	Ra≤3.2	IT9	250KW	345KW
WXC500	ф315-ф510mm	≥5000mm	0.1-1.5m/min	1-10mm	Ra≤3.2	IT9	315KW	415KW
