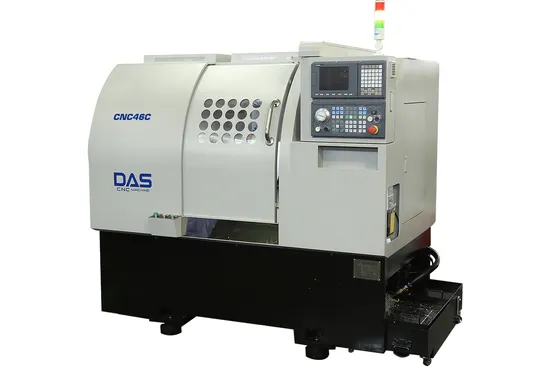

Slant Bed Gang-Type CNC Lathe CNC46c

Product Description

DAS 46C Torno CNC High Precision Metal Automatic Hydraulic Power Slant Bed cnc lathe Machine
Product Description
Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other company's numeral control system can also be used when user requires so.
Machine body is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation. The lathe bed tilts by 45° and the inclined placement of lathe carriage and tool holder will result in easy operation and chip removal. The machine tool has pleasant design appearance and less space occupation.
Equipped with computer automatic lubrication system for the linear guide and ball screw forced lubrication, ensure that the guide rail and the service life of screw.

CNC46C Technical parameters
Name	CNC46C
Tool installation	Gang type
Adjacent tool change time(s)	0.2
Tool change method	Random
Square knife holder(mm)	20×20
Round hole knife seat (mm)	φ20
Chuck size(Inch)	6"
Spindle speed(r/min)	45-4500
Spindle bore(mm)	Φ56
Center height(mm)	56
Max. Swing diameter(mm)	400
Spindle motor power(KW)	5.5
System minimum resolution	0.001
X/Z axis travel (mm)	340/250
X/Z axis rapid traverse speed(m/min)	26(Factory setting)
X/Z axis repeat positioning accuracy(mm)	±0.002/±0.002
Taper(mm)	≤0.005/100mm
Roundness(mm)	≤0.003
X servo-motor(kw)	1.3
Z servo-motor(KW)	1.3
Hydraulic station motor power(KW)	0.75
Tank motor power(KW)	150W
Cooling water tank capacity(L)	60
Feeding rack center high(mm)	1015
Power(kw)	10
Weight(KG)	2900
Size(L*W*H)(mm)	2090*1320*1760

---
