Three types of Water Level sensor, which one is more suitable for you?
HPT604 submersible level sensor, IP68 All welded ,All-dimensional waterproof , anti-blocking design Prevent plugging rate increases more than 80%, Filter<0.3mm impurities, Suitable for general sewage, waste water treatment and city water supply application.
HPT605 submersible sewage level sensor, Enhanced the filter diameter,Flush membrane to prevent clogging 20 pores design to ensure sensitivity ,Filter less 0.6mm purity. Suitable for most chemical industry sewage, pharmaceutical industry sewage, waste water treatment etc. application .
HPT611 double flanged sewage level sensor, Open double Flange design gives full protection and allows sensing to sewage levels no matter how much debris /mud/sand or rags build up. Suitable for sewage, waste water treatment with a lot of impurities.
Now Please contact us, Holykell can provide the most cost effective solution for level monitoring for a variety of applications, welcome to send your inquiry to us.

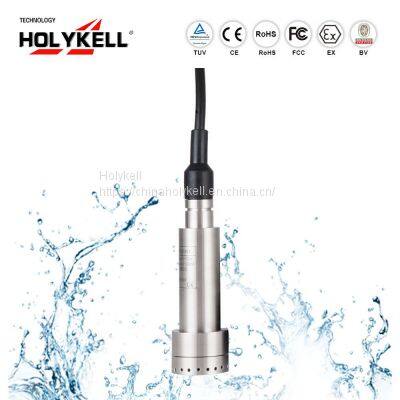

Why Choose Holykell Septic Tank Water Level Meter Sensor HPT605?
1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response
time; Its service life is 2-3 times of similar products.
2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;
Anti-interference is enhanced by 300%, the stability is over 10 years.
3. The unique design of 4 hole and The unique filter design, it Can effectively filter out impurities,
prevent blockage, prevent shock; Prevent plugging rate increases more than 80%
4. Automatic temperature compensation, -40 ~ 85℃, auto-correction temperature drift.
5. Five layers of seamless and waterproof dustproof connection design, international level IP68;
12 mm waterproof and oil-proof cables, the service life is more than 10 years.
6. Filter cover can be filter<0.6mm impurities Overload above 20bar
7. Professional Explosion-Proof Design
What's the Specification of HPT605?
Name
| Septic Tank Water Level Meter Sensor HPT605
|
Measurement Range
| 0...1…500mH2O
|
Overload pressure
| 2 times rated pressure
|
Burst Pressure
| 3 times rated pressure
|
Accuracy
| ±0.5%F.S, ±0.25%F.S, ±0.15%F.S.(if higher accuracy, please refer to HPT613 series )
|
Stability
| Typical value: 0.1%F.S, Maximum value: 0.2%F.S
|
Operation temperature
| -40℃~85℃ or -40℃~100℃(Customized)
|
Compensation temperature
| -10℃~70℃ or 20℃~80℃(Customized)
|
Medium compatibility
| All corrosive medium compatible with 1Cr18Ni9Ti and 316L
|
Electrics feature
| Two-wire type
| Three-wire type
| Four-wire type
|
Signal output
| 4~20mA
| 0/1~5V
| 0~10V
| 0.5~4.5V
| 0~100mV/V
| RS485
/EIA485
|
Power supply
| 12~36Vdc
| 10~36Vdc/ac
| 15~36Vdc/ac
| 5Vdc
| 10Vdc
| 10~30Vdc
|
Load resistance
| (U-10)/0.02(Ω)
| >100kΩ
|
Insulate
| >100MΩ@100V
|
Electrics connector
| Waterproof fixed cover + bipolar cycle matrix + sealing ring
|
+ sealgum + glue feed, etc,five rank sealed.
|
protection rank: IP68
|
Pressure junction
| Various Filter cover or Flange suit to different applications
|
Response time
| ≤10 ms (standard); ≤1 ms (Customized)
|
Pressure form
| Gauge pressure: G, Absolute pressure: A
|
Certification
| Explosion proof certification, CE certification. Rosh certification
|
Order information: Level range: 0-5m, Output: 4-20mA, Power supply: 12~36VDC
>>
