Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Dimension(L*W*H)
2300*2200*1800
Key Word
High Speed Automatic
Marketing Type
Ordinary Product
Core Components
Bearing, Motor, Pump
Key Selling Points
Easy to Operate
Product Name
Wire Cut EDM Machine
Controlling Mode
Automatic
Transport Package
Wooden Case
Specification
1650mm*1290mm*1450mm
Production Capacity
100sets/Month
Product Description
Product Overview

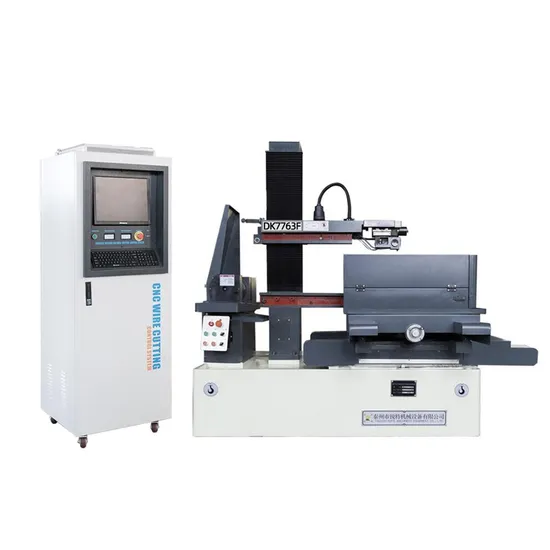

Machine model
| DK7763F
| Total machine power
| 1.5kv
|
CNC or Not
| CNC
| Minimum feed increment
| 0.001 mm
|
Machinery Test Report
| Provided
| Pulse width adjustable range
| 15-150 us
|
Brand Name
| Ruite
| Wire speed
| 11.5 m/s
|
Warranty
| 1 Year
| Input power
| 3N-50Hz 380-220 v
|
Machine Type
| Wire EDM
| Precision
| 0.015 mm
|
Product Specifications
odel
| Worktable travel(mm)
| Worktable size(mm)
| Max. cutting thickness(mm)
| Max. load(kg)
| Dimensions(mm)
| Weight(kg)
|
DK7720
| 200*250
| 490*380
| 200
| 100
| 1200*900*1300
| 800
|
DK7725
| 250*320
| 520*390
| 300
| 200
| 1450*900*1500
| 1000
|
DK7735(32)
| 350(320)*450(400)
| 730*490
| 500
| 300
| 1400*1100*1600
| 1100
|
DK7745(40)
| 450(400)*550(500)
| 810*570
| 400
| 500
| 1600*1200*1600
| 1400
|
DK7745F(40F)
| 450(400)*630
| 950*600
| 400/600
| 600
| 1600*1580*1600
| 1600
|
DK7755(50)
| 550(500)*650(630)
| 950*650
| 700
| 700
| 2000*1500*1900
| 1800
|
DK7755F(50F)
| 550(500)*800
| 1140*650
| 700
| 700
| 2000*1650*1900
| 2000
|
DK7763
| 630*800
| 1140*750
| 700
| 1000
| 2100*1700*2050
| 2400
|
DK7763F
| 630*1000
| 1350*750
| 700
| 1200
| 2250*1850*2050
| 2800
|
DK7780
| 800*1000
| 1350*980
| 900
| 2000
| 2400*1900*2350
| 4000
|
DK7780F
| 800*1200
| 1600*1050
| 900
| 2400
| 2550*1950*2400
| 4500
|
DK77100
| 1000*1200
| 1600*1100
| 1000
| 2600
| 2850*2500*2500
| 5200
|
DK77100F
| 1000*1400
| 1800*1250
| 1000
| 2800
| 2950*2050*2500
| 5800
|
DK77120
| 1200*1400
| 1800*1350
| 1000
| 3000
| 3050*2750*2500
| 7500
|
DK77120F
| 1200*1600
| 2000*1500
| 1000
| 3500
| 3100*2850*2500
| 8400
|
DK77160
| 1600*1800
| 2000*1700
| 1000
| 4000
| 3250*3000*2500
| 10000
|
Product Category
Successful Project
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Hot Products
DK7720
DK7735
DK7745
DK7745F
DK7750
DK7763
Company Profile
Taizhou Ruite Machinery Equipment Co., Ltd established in 2017, has obtained 3A integrity enterprise, ISO9001, SGS, etc. Ruite will always adhere to the purpose of high-tech quality and efficient service, and continue to provide high-quality services for enterprises at home and abroad with first-class products and reasonable prices.
Innovative Ruite CNC is committed to providing customers in various industries with overall solutions for wire cutting, including customized production of machine tools, installation and life-long technical services, to achieve a win-win situation between enterprises and users. The company's "Ruite" DK77 series of medium and fast wire cutting machine tools are known for "large taper, large stroke, high efficiency, high precision, new structure, low loss, more energy-saving, and more environmentally friendly". The products are selling well in Europe and America. We sincerely welcome people from all walks of life to come and visit.
Packing and shipping
FAQ
Q1:Could I visit your factory?
A:Of course,yes!Warmly welcome all customer from all over the world to visit our factory.
Q2:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q3:What about the price?
A:We promise the price we offer is lowest if same application,only to enlarge the market share.And given you cost price for consumable parts.
Q4:Why choose you?What is the difference between you and other Chinese supplier?
A:We Specializing in the search and development, testing, manufacturing and sales of CNC numerical control system for wire-cutting electric discharge machine tools, wire-cutting wire cutting machine tools, jade wire sawing machines and electrical processing equipment. All our products with CE certification.
Q5:I`m worried about after-sales service!
A:Warranty is one year.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a satisfactory solution within 24 hours.
>>
