Product Description
Product Description

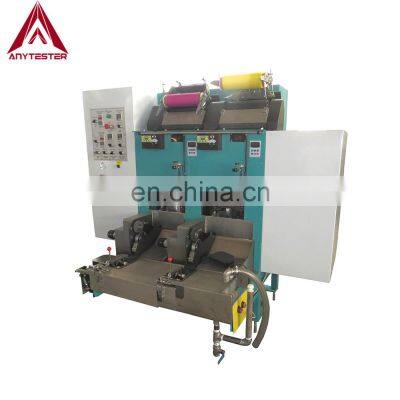

Product DescriptionAT240 Series Single Yarn Sizing Machine is suitable for yarn sizing of cotton, flax, silk, wool, synthetic filament, etc.As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT240 Series Yarn Sizing Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.SpecificationModelAT240Number of spindles2, 4, 8, 12 or customizedSizing speed20~300m/mincontrolled by invertor and adjustable according to yarn kindHeating methodSteam heating or electric heating (optional)Applicable yarn density5~500tex, cotton, wool silk or chemical fiberMotor power of rotation frame0.18KW per spindleMotor power of grooved drum0.75KW per spindleHeating power of oast1.8KW per spindleMotor power of heat circulationApprox.1.lKWPower supplyAC380V 50Hz, three-phaseDimensions3100×850×1750mm(L×W×H) for 4-spindle machineWeight1000kg for 4-spindle machineDetails & FeaturesOverview of AT240★Independent control of each spindle, digital display of tension index and digital display of speed of rotating frame and counting of length. And rotating frame storing 160 turns of yarn on it to increase the drying timeAutomatic Tension Control★single spindle control, the frequency controller or steeples controller is used for cabbage rotational motor in drying room. The yarn guide cylinder is traced by the servo.Automatic Speed Control★Grooved drum controlled by servo motor and its rotation speed is automatically adjusted according to the speed of rotating frame to control the yarn tension ★Independent control of each spindle with digital display of speed and length;★Motor of rotating frame controlled by interver or stepless-adjustable speed controller and grooved drum controlled by servo motor tracing the speed of rotating frame for automatic tension control;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions3100×850×1750mm(L×W×H)WeightApprox.1000kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
