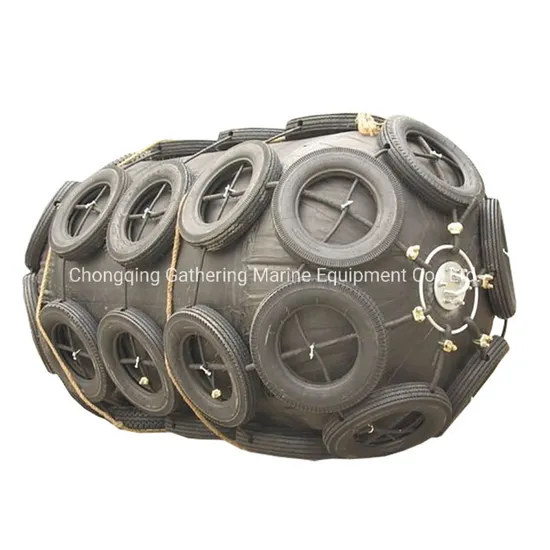

Aero Tyre Pneumatic Rubber Fender Inflatable Fender

Product Description

Aero Tyre Pneumatic Rubber Fender Inflatable YOKOHAMA Fender
Marine rubber fenders have been widely used for berthing by ship to ship or ship to dock, such as marine pneumatic rubber fender, cylindrical type rubber fender, super cell rubber and cone type rubber fender etc.
Feature:
1. Anti-explosion.
2. Wholely wrapped.
3. Anti-aging.
4. Thick material, 18layers, 19layers, 20layers, 21layers, 22layers, etc.
Description:
1. Inner: Rubber tube.
2. Middium layer: Multi-layer of rubber-dipped Nylon cord fabric.
3. Material: Natual rubber, anti-aging. Multi layer of rubber-dipped tyre fabric.
4. Outer: Tyre-chain net.
5. Tyre: Air tyre, car tyre.
6. Chain: Hot galvanized.
7. Flange: Hot galvanized or stainless steel.
8. Shackle: Hot galvanized.
9. Valve: Copper.
10. Working pressure: 0.05Mpa, 0.5Bar.
11. Testing pressure: 0.15Mpa, 1.5Bar.
Warranty: 12 months.
Life-span: 8 years.
Pneumatic Rubber Fender Specification

Specification Φ×L	Initial pressure inside	The compression is 60%		Body weight
		Counterforce	Energy absorption
mm×mm	Mpa	(KN)	KN.m	(kg)
500×1000	0.05	64	6	25
800×1500	0.05	156	19	57
1000×1500	0.05	182	32	68
1000×2000	0.05	257	45	100
1200×2000	0.05	297	63	120
1200×3000	0.05	410	87	160
1500×3000	0.05	579	153	315
2000×3000	0.05	776	273	518
2000×3500	0.05	875	308	590
2500×4000	0.05	1381	663	1050
3000×5000	0.05	2000	1050	1880
3000×6000	0.05	2488	1312	2160
3300×6500	0.05	3015	1814	2700

OEM dimensions are available too.

We could supply different type of Boat fender with Rubber or PVC, Plastic material.
Welcome to contact us for detailed information if you are interested in Rubber Fenders.

---
