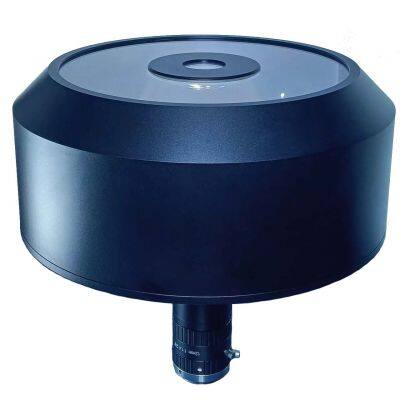

60° OD3080 ( O.D 30-80mm ) Degree Outer View Object 100mm Diameter Outwall Surface Imaging Sensor >2/3" Megapixel Lenses Camera Lens Factory Automation Machine Vision Optics For Cylinder, Bottle Cap，Fasteners etc.
Outer view surface imaging
* Varity of format / sensor size >1/2”
* High resolution megapixel
* Large Diagram Object
* Application : pharmacy, bottle, tube etc.
Download Datasheet ==> SOD3080
|
|
|
|
Model
| OD3080
|
Sensor
| >1/2" ( 1/2" ~ 1.1" )
|
| Mount | C
|
W.D
| 10-43mm
|
Aperture
| F6.0~12
|
Diameter(mm)
| Height (mm)
| WD(mm)
| FNo.
|
30
| 27
| 43
| 12
|
40
| 36.7
| 26.5
| 10
|
50
| 46.6
| 10
| 10
|
60
| 40
| 10
| 8
|
70
| 33.1
| 10
| 6
|
80
| 26.5
| 10
| 6
|
OD3080 360° Degree Outer View Outwall Surface Imaging Sensor >1/2" ( 2/3", 1/1.8" ... ) Megapixel Lenses Low Distortion Industrial Camera Lens Pharmacy Factory Automation Machine Vision China Optics Manufacturer
Outer view surface imaging
* Varity of format / sensor size >1/2”
* High resolution megapixel
* Large Diagram Object
* Application : pharmacy, bottle, tube etc.
Download Datasheet ==> SOD3080
|
|
|
|
Model
| SOD3080
|
Sensor
| >1/2" ( 1/2" ~ 1.1" )
|
| Mount | C
|
W.D
| 10-43mm
|
Aperture
| F6.0~12
|
Diameter(mm)
| Height (mm)
| WD(mm)
| FNo.
|
30
| 27
| 43
| 12
|
40
| 36.7
| 26.5
| 10
|
50
| 46.6
| 10
| 10
|
60
| 40
| 10
| 8
|
70
| 33.1
| 10
| 6
|
80
| 26.5
| 10
| 6
|
