Basic Info.
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Type
Hybrid Stepper Motor
Transport Package
Carton Box with Foam
Production Capacity
20000 Pieces/Month
Product Description
Product Description

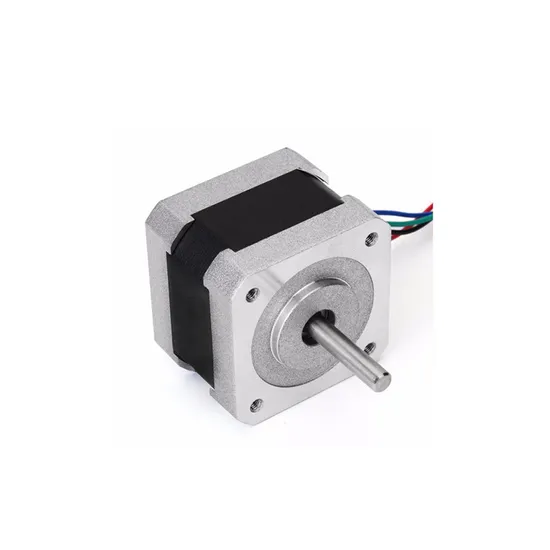

42HS48-0406 Nema 17 Hybrid Stepper Motor 2 Phase 1.8° Electric Step Motor
All models in the table are available
42HS48-0406 is a type of 1.8 square shape hybrid stepper motor. It combines features of both permanent magnet (PM) and variable reluctance (VR) stepper motors. The motor wire is made of pure copper. It has the characteristics of small step angle, large output torque, good dynamic performance and low noise. Due to different parameters, it has many models. If you want to know more, please contact with me, and I will provide the motor parameters, according to different motor matching related procedures.
Motor Dimension&Wiring Diagram:
Product Specification:
Item | Value |
Model Number | 42HS48-0406 |
Type | Hybrid |
Phase | 2 |
Step Angle | 1.8° |
Temperature Rise | 80ºC Max |
Ambient Temperature | -20ºC Max~+50ºC |
Insulation Resistance | 100M ΩMin., 500VDC |
Dielectric strength | 500VAC for 1 minute |
Shaft Radial Play | 0.02Max(450-load) |
Shaft Axial Play | 0.08Max(450-load) |
Max Radial Force | 21N (20mm from the flange) |
Max Axial Force | 10N |
Application & Packing
Stepper motors are widely used in various fields, especially in the field of mechanical automation, such as artificial intelligence robots, laser engraving machines, 3D printers and plotters ect. Our stepper motor models include Nema 8, Nema 11, Nema 14, Nema 16, Nema 17, Nema 23, Nema 24, Nema 34, Nema 42, Nema 52. If you want to know more, please contact me.
Packing Details: 1. Carton box with foam
2. Box can be customized as your requireme Delivery: We usually ready goods and stocks within 3-10 days after receiving the payment. However, the lead time may vary due to different product models and the quantities. If you want to know more, please contact me.
About Us
Henan Lunyee Industries Development Co., Ltd, as the Chinese leading provider of factory automation (FA) solutions, has been specialized in manufacturing and exporting automation motors worldwide for decades. We are committed to providing one-stop industrial automation solutions for global small and medium-sized enterprises, serving the world, and pushing China's high-quality industrial products to the world at the same time.
We offer: 1) AC/DC gear motors, precision planetary gearboxes (spur/helical gears) and stepper motors/drivers for servo systems. 2) Linear bearings, guides & blocks for linear motion system. 3) Precision locking nuts and couplings in FA rotary/transmission parts. 4) Customized machining components. WE FOCUS ON CUSTOMER SATISFACTION!
To achieve our goal of "Full Customer Satisfaction", we insist on innovation and improvement in quality, assembling time, working life, operating procedure and maintenance service. We also focus on human environment's health and safety. We have got other related certificates like ISO9001, CE, CCC and UL. Adhering to this aim, we sincerely look forward to establishing win-win cooperation with clients all over the world.
FAQ
1. How to choose a motor to match my machine ?
Please give us the key parameters of the motor. Here are some important specifications we need: holding torque, step angle, motor length, voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection. 2. How can we know the product quality?
We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
3. Are you motor manufacture?
Yes, we are motor manufacture, we develop and produce the motors and drivers by our own factory.
4. Do you have the products in stock?
Most of conventional products with stock, except special requirements. 5. Can you offer OEM/Printing logo on samples?
Yes, but the price is different according to different logo styles such as letters, photo, size, colors ect. For more detail, please send message to our sales service.
>>
