| US$25.00 | 100 Pieces (MOQ) |
| Specification Parameter: specification parameter | ||

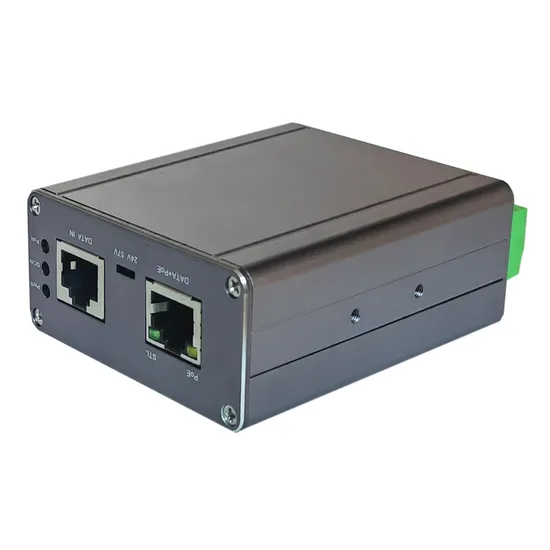

| product model (Product Model) | HV-EC350-B(BT8) | HV-EC550-A(BT8) |
| hardware configuration (Hardware Configuration) | ||
interface type (Interface Type) | 1 x 10/100/1000Mbps RJ45 Data IN 1 x 10/100/1000Mbps RJ45 PoE OUT 1 DC IN(3P) power supply terminal 1 DC2.0 power interface | 1 x 10/100/1000/2500Mbps RJ45 Data IN 1 x 10/100/1000/2500Mbps RJ45 PoE OUT 1 DC IN(3P) power supply terminal 1 DC2.0 power interface |
| switch (DIP Switch) | 1 output voltage adjustment switch | |
| Power input (DC IN) | DC2.0: 36-48V/5A(MAX) 5.08mm_3P Terminal: 12-48V/10A(MAX) | |
| PoE standard (PoE Standard) | IEEE802.3bt | |
| Class8 | ||
| PoE output power (PoE Power) | MAX:90W(IEEE802.3bt) | |
| PoE pin definition (PoE PIN) | PIN: 1278+,3456- | |
| PoE output (PoE Output) | IEEE802.3bt: 54Vdc | |
| IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; | |
| network protocol (Network Protocol) | IEEE802.3u 100Base-TX; IEEE802.3x; | IEEE802.3u 100Base-TX; IEEE802.3x; |
| IEEE802.3ab 1000Base-T; | IEEE802.3ab 1000Base-T; | |
| IEEE802.3bz 2.5GBase-T; | ||
Led light (LED Indicators) | PWR(Power): power indicator. | |
| Poe: Poe on indicator light | ||
| Din: DC 2.0 power supply access indicator light | ||
| La: 4-wire PoE power supply indicator lamp | ||
| Lb: 4-wire PoE power supply indicator | ||
| transmission distance (Transmission Distance) | Poe: 100/1000/2500mbps 0 ~ 100m (CAT5e,CAT6) | |
| PoE:10Mbps 0~250 meters (CAT5e,CAT6) | ||
| transmission medium (Transmission Medium) | 10base-t: cat 3, 4, 5 and above twisted pair | 10base-t: cat 3, 4, 5 and above twisted pair |
| 100base-tx, 1000base-t: cat 5, 5e, 6 and above twisted pair. | 100base-tx, 1000base-t: cat 5, 5e, 6 and above twisted pair. | |
| 2.5GBase-T: Cat5e,6 and above twisted pair | ||
| Working temperature (Operating Temperature) | -40ºC~+75ºC | |
| Storage/transport temperature (Storage Temperature) | -40ºC~+85ºC | |
| relative humidity (Relative Humidity) | 5%~95% non-condensing. | |
| Heat dissipation mode (Thermal Methods) | No fan design, natural heat dissipation | |
| Mean Time Between Failure (MTBF) | 100000h | |
| the protection grades (Protect Garde) | IP40 | |
EMC | Surge for power surge protection: IEC 61000-4-54 kV/2 kV (8/20 US) | |
| Surge for surge protection of network port: IEC 61000-4-54 kV/2 kV (10/700 US) | ||
| Anti-static ESD: IEC 61000-4-28K/15K | ||
| product size (Product Size) | 80*70*32mm | |
| Packing size (Package Size) | 120*100*59mm | |
| Installation mode (Installation Method) | DIN installation or wall-mounted installation | |
| net weight (Weight) | 0.3KG | |
| attachment (Enclosure) | Equipment, certificate, instruction manual | |
| Power adapter (non-standard: optional purchase as required) | ||
| Packing mode (Package info) | 80PCS/CTN,510*430*320mm,25kgs/CTN | |
| Warranty period (Warranty) | 1 year | |
| Product Selection: product selection | ||
HV-EC350-B(BT8) | PoE power supply, two 10/100/1000Mbps RJ45 ports, 54V PoE output, maximum total output power of 90W (Port 1 IEEE 802.3BT Class 8max: 90W), DC: 12V-51V input, wide temperature (-20-65 C), DIN rail/wall mounting; | |
HV-EC550-A(BT8) | PoE power supply, two 10/100/1000/2500Mbps RJ45 ports, 54V PoE output, maximum total output power of 90W (Port 1 IEEE 802.3BT Class 8max: 90W), DC: 12V-51V input, wide temperature (-20-65 C), DIN rail/wall mounting; | |
| Remarks: AC-to-DC external power supply is excluded by default; Optional; | ||
