20-40FT Hydraulic Telescopic Container Spreader

Product Description

Product Description

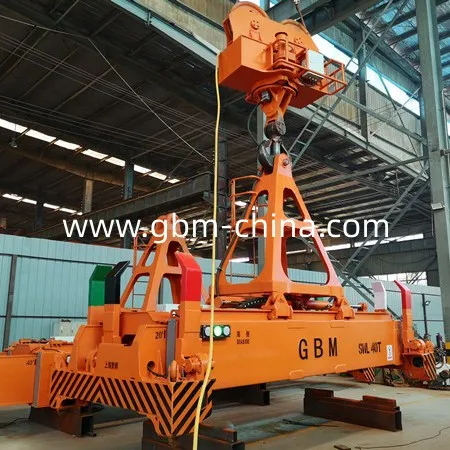

GBM hot sale 20-4ft electrical hydraulic telescopic rotating container spreader
Description:
Telescopic spreader is driven by hydraulic transmission telescopic chain or cylinder (now also do not use hydraulic but direct drive with the motor),So that spreader through the automatic expansion to change its length to accommodate the loading and unloading of different specifications of the container. Telescopic spreader although the weight is large,But the length of easy adjustment, flexible operation, versatility, high production efficiency, so the world's container-specific machinery mostly use this spreader.


1.Scope of supply
One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.

Item	20'	40'
Rated SWL	25-35T	32-45T
Max. SWL	40T	50T
Dead Weight	1.2-2.6T	1.2-2.6T

2.Overall Dimensions

Item	20'	40'
Distance between lock centers(length)	≈ 5853 mm	≈11985 mm
Distance between lock centers(width)	≈ 2260 mm	≈2260 mm
Overall Length	≈ 6058 mm	≈12188 mm
Overall Width	≈ 2610 mm	≈2610 mm
Frame Height	≈ 636 mm	≈731 mm

3. Technical Parameter

Item	20'	40'
Dia. of pressed wire rope slings	32 mm	36 mm
Length of pressed wire rope slings	3.5m per piece (4 pieces for each set)	8.5m per piece (4 pieces for each set)
Steel Frame	Material Q345B	Material Q345B

---
