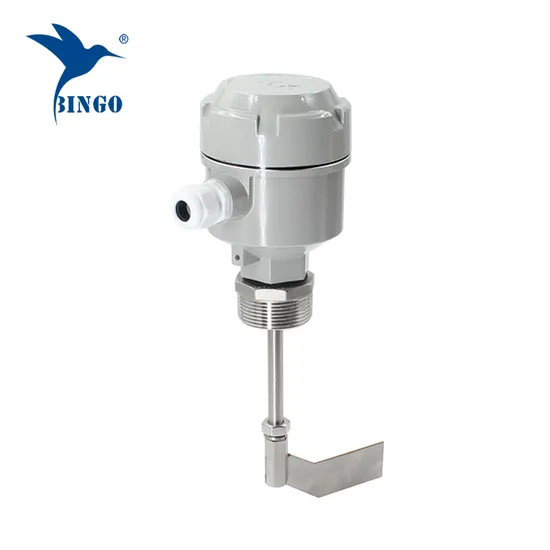

Powder Tank Rotary Paddle Level Switch Rotary Paddle Level Switch

Product Description

Powder Tank Rotary Paddle Level Switch ,Rotary Paddle Level Switch 1.Introduction:
Rotary Paddle Level Switch utilizes micro motor as drive device, transmission shaft contact with clutch. When it doesn't contact with material, the motor runs normally; When the blade contacts with material, the motor stops running; Detacher device outputs a contact signal and cuts the power, meanwhile it stops rotary. The pressure to blade is disappeared when the material gradually fall down and the testing device recovered to the original state by torsion spring. Torsion could be regulated according to different gravity of material. Rotary paddle level switch can eliminate the normal fault which other common rotary paddle level switch has. When adding material, it would not go to stop though the motor stops by cutting power. This can reduce fraction, operating temperature and extend the lifetime of motor. The switch contains little moving parts, three sets of drive bearing and sealed, lubricated driving gear assembly. That is why the RD series of Rotary Paddle Level Switch gains reliable control force in the market. Rotary paddle level switch specially used for detecting material level of warehouse, vessel and tank. The material level switch can prevent warehouse flooding, tank jam and warehouse empty so as to reduce flooding, material waste and standby time. Rotary Paddle Level Switch is also suitable for plastic, food, chemical industry, mineral iron, material and other solid matter.
Other types we can supply:
2.Technical Parameter:
Buying Guides Before the quotation, we need the following information:
1. Media and temperature
2. Voltage
It will affect the unit price
3. top mounted or side mounted
We need to know the probe length if it is top mounted.
4. Paddle size and connection can be customized according your requests.
3. How to pay and how to delivery? PayPal, WESTERN UNION, Maestro, MoneyGram, VISA
UPS, FedEx, TNT, DHL, EMS
4. Packaging: 1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping. For an example:
Our service 1. Delivery time is 5~7 days for sample and 15 working days for bulk order;2. Strong production capacity and strict quality control system;3. Your inquiry and problems related to our products or prices will be replied in 24 hours;4. Well-trained and experienced staffs to answer all your inquires;5. After-sale tracking service for all of our clients;6. OEM is available; small quantities, mixed bulk orders are also welcome;7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
After-sales service
1.1~2years warranty for most of our products;
2.We will arrange delivery of the goods on time:
3.Within the warranty period, we will bear all the qulity problem of our produts;
4.Beyond the warranty period, we will despatch the replacement parts to help fix the products;
5.Without any problem, we will gain the feedbacks of our products to help improve better products.
