High Support Strength Crane Outrigger Pad HDPE/UHMWPE Pure Raw Material/Recycled Material Outrigger Pad Custom Leg Pad

Product Description

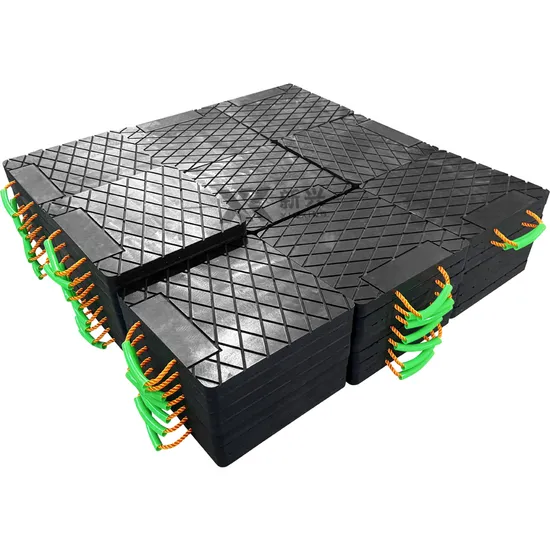

UHMWPE Plastic Crane Leg Pads Jacking Blocks Crane Support Plate
Polyethylene is the most commonly used plastic in the world, but how do you know if it's the right yarn for your application? Consider the attributes of ultra-high-molecular-weight polyethylene (UHMWPE) - a very tough subset of polyethylene that has a strength to weight ratio 8-15 times greater than steel.
Outrigger pads are made in UHMWPE or HDPE material, an engineering material that offers a superior combination of impact strength, wear and chemical resistance. Each pad is equipped with a durable rope handle to allow for easy storage and mobility. UHMWPE/ HDPE Outrigger Pads are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer. As you can see UHMWPE has a diverse range of uses from manufacturing to medical as well as in wire and cable applications. This is due to its long list of benefits which meet specific requirements for many different jobs.
The advantages of UHMWPE include, but are not limited to:
Excellent resistance to stress and high resistant to cracking Abrasion wear resistance - 15 times more resistant to abrasion than carbon steel Its 40% Stronger than Aramid yarns Its strong chemical resistance - highly resilient to most alkalis and acid, organic solvents, degreasing agents and electrolytic attack It's non-toxic Excellent dielectric properties Self-lubricating - very low coefficient of friction (comparable to PTFE) Non-staining FDA approved for use in food and medical applications Low specific gravity - will float in water
UHMWPE Outrigger Pads are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer.
light weight, 1/7 th the weight of steel; withstands loads up to above 20 Mpa; retains its physical properties to -80ºC; will not corrode, rot or rust; high impact & wear resistance; can withstand over 450T of compressive load.
Outrigger pads can be used not only as crane leg pads, but also the trailer plates, sleeper of heavy machinery track mats of heavy trucks.
Why use UHMWPE instead of other materials
UHMWPE or Ultra High Molecular Weight Polyethylene offers wear resistant and sliding properties that make it an ideal choice for many industries such as materials handling, food, mining, transport and marine among others.
Known for excellent toughness and good sliding properties, UHMWPE is a lightweight material offering resistance to diluted acids, cleaning agents and numerous solvents. The material also provides benefits such as very good abrasion resistance, superior electrical insulation, and very low water absorption.
The material is ideal for creating chemical apparatus, chopping boards, conveyor parts, cryogenic parts, food processing equipment, liners, and wear strips.
UHMWPE Outrigger Pads are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer.
light weight, 1/7 th the weight of steel; withstands loads up to above 20 Mpa; retains its physical properties to -80ºC; will not corrode, rot or rust; high impact & wear resistance; can withstand over 450T of compressive load. The properties of UHMW-PE:

Property:	Test Method (Standard)	Ticona GUI4152	Ticona GUI4150,4120	Unit
Molecular weight		1.5million-4million	1.5million-8million
Density	ISO 1183-1:2012/DIN53479	0.92-0.98	0.93-0.98	g/cm³
Compression strength	ISO 604:2002	≥30	≥32	Mpa
Tensile strength	ISO527-2:2012	≥20	≥22	Mpa
Elongation at break	ISO527-2:2012	≥280	≥300	%
Dynamic Friction coefficient	ASTM D 1894/GB10006-88	≤0.20	≤0.18
Notched impact strength (Charpy)	ISO179-1:2010/GB/T 1043.1-2008	≥100	≥100	kJ/m2
Abrasion wear index	ES-X60210-2008	≤30	≤30	mg
Vicat softing point	ISO306:2004	≥80	≥80	°C
Hardness shore-D	ISO 868:2003	60-65	61-66	D

Application:
Outrigger pads are placed under the support-leg of truck crane, crawler crane, rough crane, boom pump, concrete pump, fire truck, utility truck, tree trimmer, any type of aerial equipment, and so on. For making the machine work safely!
FAQ
1: Are you trading company or manufacturer ?
A: We are factory.
2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if out of stock, also depends on the quantity.
3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the 100*100mm sample for free charge but you pay the cost of freight.
4: What is your terms of payment ?
A:Payment term is flexible.we accept T/T,L/C,Paypal and the other terms.Open to discuss.
5. Is there any warranty on the quality of your products?
A: Please don't worry about that, we have 20 years of experience in producing UHMWPE products, our products widely used in Europe, the America and other countries.
6. What about the after-sales service?
A: We have years of guaranteed life, if our products have any problems, you can ask the feedback of our product termly, we will fix it for you or replace depending on the circumstances.
7. Do you inspect the your product?
A: Yes, each step of the production system and finished products will be carried out inspection by QC before shipping also.
With these pads we assure you your crane legs are protected and there are not going to slip.
Don't hesitate just give us a call

---
