Metal Carrier Honeycomb Substrate Catalytic Converter DPF Coating for Vehicles

Product Description

Product Description

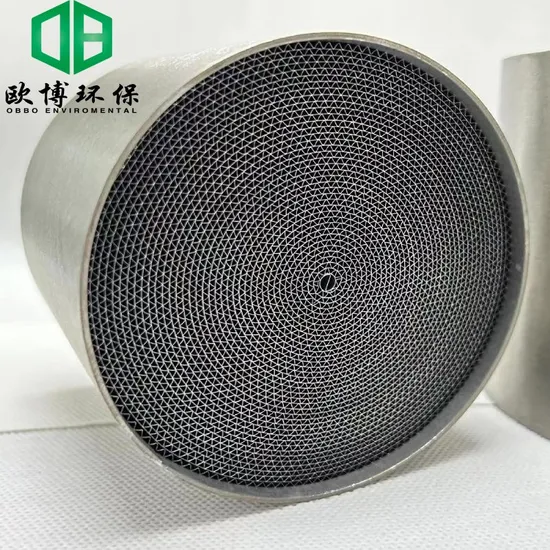

The catalytic converter is coated with rare earth element and noble metals of PT, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body. It is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard. Along with the Europe III, IV emissions implementation, our factory has carried on the optimized design in the original formula foundation, developed a series of combustion initiation temperature to be lower, the transformed efficiency was higher.
Product Parameters

Shelll material	Ferritic stainless steel SUS444, SUS441, SUS430 and austenitic stainless steel SUS304, SUS316.
Core material	Domestic FeCrAl (2073/216) and import FeCrAl (1.4725/1.4767).
Dimension(mm)	Diameter from 28mm to 550mm, length up to 300mm
Cell density (CPSI)	100, 200,250,300,400,500,600
Foil thickness(mm)	0.03,0.04, 0.05,0.06,0.08,0.10
Light-off temperature	T50(CO)≤230 T50(HC)≤260 T50(NOX)≤250
Shape	Round, oval, race track, rectangular
Engine compliance:	Petrol engines, diesel engines, and general engines
Light off temperature	CO≤210ºC HC≤230ºC NOX≤250ºC
Conversion efficiency	CO≥85% HC≥80% CO≥85%
Coating desquamate rate	≤7%
Emission standard	Euro2, Euro3, Euro4, Euro5
Active catalyst ingredients	Pt, Pd, Rh, and rare earth elements

Our Advantages
1.Excellent filter element
Composed of internal sound-absorbing materials to reduce sound intensity and noise.
2.Thin carrier pore wall
High porosity on the hole wall, good flowability, and uniform distribution
3.Long service life
The product has a low ignition temperature, longer service life, and can reduce replacement frequency.
4.High purification rate
Strong carrier adhesion enhances catalyst activity and high purification rate

Coating precious metals
