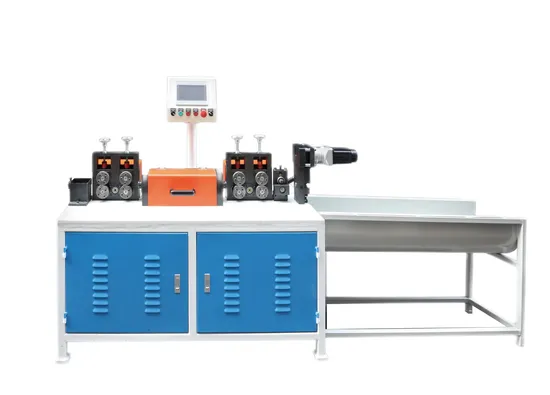

High Quality Iron Wire Stainless Steel Wire Bar Straightening Machine with Cutting

Product Description

Product Description

The structure of the straightening machine is that the angle of the straightening die is adjusted by the rotation of the high-speed rotor to achieve the straightening effect, and then the wire is adjusted forward through the wire adjusting wheel. When the required size is reached, the wire touches the positioning key and pushes the runway forward by 5mm. When the upper punch presses the vertical wire cutter, the wire will be cut off immediately. The wire will press the open bearing through the pressing plate on the vertical wire cutter, and the wire will automatically fall to the wire holder. If the length needs to be changed, move the positioning key.

Features and scope of use

The straightening machine has the characteristics of reasonable structure, convenient operation, safety and reliability, fast speed, a small error, and no wire running. It is suitable for the straightening of chicken cages, rabbit cages, net covers, pet cages, construction nets, various welding wires, Shule plate wire cutting, and wires for special-shaped nets.

Double-headed pulling type; There is no error in the length of cut reinforcement; The construction wire adopts tungsten steel mold; The product wire adopts the ball end mold, and the steel bars will not damage the surface.

Machine model: 3-8

Cutting length range: more than 50mm

Send wire speed: adjustable speed 7-35 m / min

Length error: within 500mm ± 0.5mm (plus 500 plus 0.5mm)

Straightening material: ordinary carbon steel wire, stainless steel material

Feeding frame: 800*300*600

Wire feeding motor: 2.2kw with reducer - Dongguan Wanxin 40 medium-sized reducer - GH40-2200W-3S

Straightening motor: 5.5KW-2P--Jiangsu Huasheng

Servo motor: servo motor 1.0KW- 1500rpm--Wuxi Xinjie

Guide rail module: Taiwan Seiko

Ball screw module: Taiwan Heqing

Feed line group: 2 groups (5 pairs of wheels)

Control screen: touch screen

Number of straightening blocks: 6

Cutting motor: 2.2KW

Cutting cylinder: MOB63-20

Wire range: 2-8mm (ordinary carbon steel) (stainless steel 2-6mm)

Rack size (L*W*H): 2670*710*1450 (mm)

Wire frame: ordinary wire frame (without power) automatic wire frame (can adjust the speed of automatic rotation)

Detailed Photos
Packaging & Shipping

Company Profile
Foshan Jinchun Industrial Automation Technology Co., Ltd. was established in 1998. It is a technology-intensive industrial company specializing in the development of welding technology and equipment research and manufacturing, integrating scientific research, production and sales.With rich experience and strong technical personnel, the company constantly innovates and develops various types of high-quality hardware wire rods, hardware mesh baskets and other mechanical equipment. It has formed five series of electric fan and industrial fan guard production line, wire tube evaporator and condenser production line, pet cage production line, bag cage frame production line for bag filter, buckle machine and chain machine production line. The company has accumulated more than ten years of development, production and operation of welding machines and related products. The products are widely used in the fields of manufacturing and production of hardware appliances, lighting, kitchenware shelves, decorative handicrafts, cultural and sports products, electrical and electronic communication batteries, and industrial equipment automation. With a very wide user group.The company pursues management to promote efficiency, quality for survival, technology for development, strictly implement the national quality assurance system standards, provide customers with high-quality, stable and reliable products, and perfect high-quality services. Welcome people from all over the world to visit the company. business, and work together to create a better tomorrow.
FAQ
1. who are we?We are based in Guangdong, China, start from 2018,sell to Domestic Market(60.00%),Southeast Asia(15.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(5.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?2D Wire bending machine,3D wire bending machine,ring making butt welding machine,straightening machine,welding machine4. why should you buy from us not from other suppliers?Efficient communication Strong customization ability, Short lead time Stable machine performance Excellent after-sales service5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/T,L/C,Credit Card,Cash;Language Spoken:English,Chinese

---
