Coffee Cup /Ice Cream Cup /Hot Cup/Cup Lid /Paper Lid Forming Machine

Product Description

Product Description
1. The single-layer paper cover forming machine series equipment adopts advanced forming technology, which has the advantages of simple operation, easy mold replacement, stable performance, high efficiency, environmental protection and energy saving. According to the different requirements of customers, it adopts automatic roll paper feeding and paper sheet feeding, creasing, embossing, punching, feeding to the mold, heating, crease, knurling, forming and other series of automatic functions. The same mold can achieve different design requirements on the top of the lid by changing the indentation version.
2. The automatic single-layer paper lid forming machine is suitable for lids made of coated paper, ice cream cup lids, coffee cup lids, noodle bowl lids, salad bowl lids, etc. It has largely replaced the plastic cover on the market.
3. Main advantages:
high speed.
Roll paper/sheet paper (you can choose one of them according to your needs)
Automatic creasing (guide line),
Automatic embossing (the logo and shape on the lid can also be cross-cut),
Automatic punching (cut roll paper into cover),
Cover a piece of paper to save costs.
PLC control + servo motor paper feeding
Open cam + shaft + cam + gear control movement, stable and reliable.
Samples
Product Parameters

Model	DPJ-90	DPJ-M70	ZGJ-60T
Paper Cover Dia	65-125MM	100-140MM	130-190MM
Raw Material	single/double Pe coated paper	single/double Pe coated paper	single/double Pe coated paper
Paper Weight	280-450 gsm	280-450 gsm	280-500 gsm
Speed	80pcs/Min	55pcs/Min	50pcs/Min
Power	380V 50hz3Ph(customizable)	380V 50hz3Ph(customizable)	380V 50hz3Ph(customizable)
Machine Weight	3000kg	3200kg	3500kg
Packing Size	2350*1700*1850mm	2350*1700*1850mm	2350*1700*1900mm

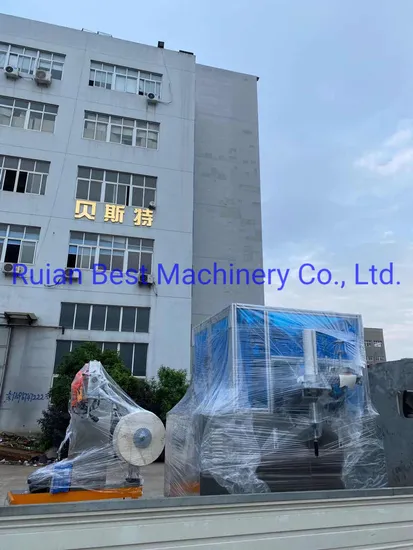

Packaging & Shipping
Ruian Best Machinery Co., Ltd. warmly welcomes new and old customers to visit, guide and negotiate.
After Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ
1.Are you trading company or manufactuer?
A: we are manufacturer of the paper product machinery in China.
2.Do you have quality certificate?
A: we have got the CE certificate for our machine.
3.What's the delivery time?
A: Around 45 days
4.How does your factory do regarding quality control?
A: Quality is priority.our factory always attath great importance to quality controlling from the very beginning to the very end.

For more details and video information of this paper container machine,please feel free to contact us.
Can also contact below for faster connections and communication.Bella Xu

---
