Universal Tooling Milling Machine HX6436/HX6436CL/XL6436

Product Description

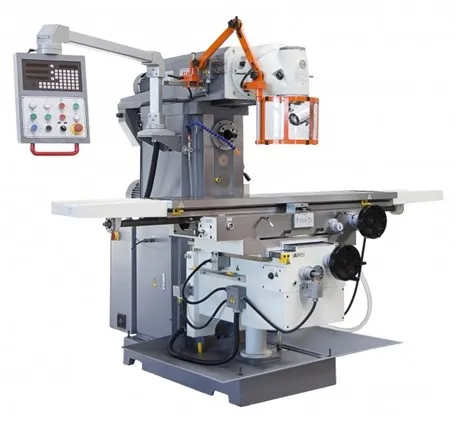

Machine Photo
HX6436C/HX6436CL Machine Features
• Rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
• Precision-grounded guideways with hardened surfaces for long-term accuracy and wear-resistance.
• Large work area of 1600 x 360 mm and up to 350 kg table load capacity
• Quiet, precision-made headstock gears with hardened and grounded gears
• Universal milling head can reach fast conversion between vertical milling and horizontal milling
• Most of machining angle can be set with combining both swivel levels,
• Servo motor allows continuous adjustment for all 3 axis feeding
• Control panel swings out to either side and features an integrated position indicator
• 5.5 kW main drive with high torque
• Coolant system and chip tray included
Specifications:

Specification	Unit	HX6436C	HX6436CL
Table size	mm	1325×360	1600×360
Table travel (X/Y/Z)	mm	1100/300/400	1300/300/400
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375	30~750/20~500/15~375
Spindle taper		7:24 IS050	7:24 IS050
Arm travel	mm	600	600
Distance between spindle nose and table surface	mm	190-590	190-590
Swivel Table		±45°Optional	±45°Optional
Distance between horizontal nose and table surface	mm	20-420	20-420
Distance between spindle and arm	mm	200	200
Spindle speed range	r.p.m	12 steps 60-1750 (V) 12 steps 60-1800 (H)	12 steps 60-1750 (V) 12 steps 60-1800 (H)
T-slots (NO./width/pitch)	mm	3/18/80	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	15	15
Overall size	mm	2320×2100×2000	2520×2100×2000
Net weight	kg	2750	2850

Standard Accessories:

name	Specification Model	Qty
7:24 middle cover	7:24 ISO50/MS4	1
Horizontal arbor assembly	Ф27	1
Horizontal arbor assembly	Ф32	1
Drawbar	M24	2
Double-ended wrench	S22-24	1
Double-ended wrench	S17-19	1
Double-ended wrench	S36-41	1
Inner hexagonal wrench	5	1
Inner hexagonal wrench	10	1
Inner hexagonal wrench	14	1
Sleeve	M24	1
Washer	M24	1
Taper shanl sets milling cutter arbor	7:24 ISO50-Ф32
Operation manual		1
The packing list		1
Certification		1
EP1C series servo drive manual		1

---
