Door and Window Sealing Strip Cold Feeding Extrusion Line with Technical Support

Product Description

Door and Window Sealing Strip Cold Feeding Extrusion Line with Technical Support

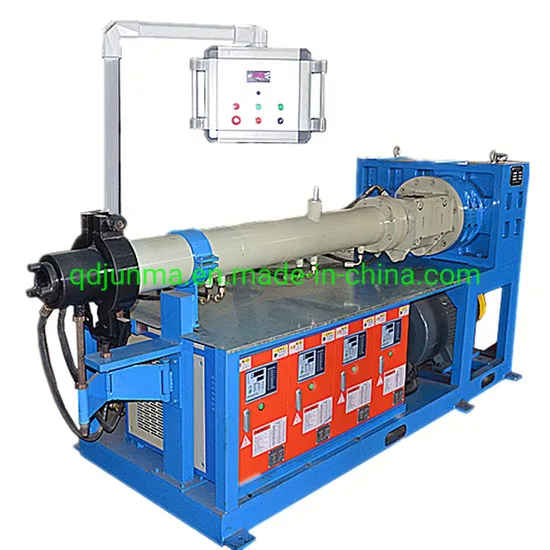

Rubber seals production line extruding process is including many machines, as cold feed rubber extruder, automatic thermostat circulating vulcanizing box, cooling tank, roller traction machine, duplex winding machines and other equipments. This production line has the advantage of labor, effort and energy-saving, environmental protection and high capacity etc.
Automatic thermostat circulating vulcanizing box adopts automatic thermostat temperature control system which has character of fast heating and high production efficiency etc.
1. Electric heating tube heating, temperature range as the room temperature to 260° C, the entire line automatic thermostat, and temperature control accuracy of +/-2 ° C.
2. Effective length of the vulcanizing box generally is 26 meters. It liner with 120stainless steel and the middle insulating layer is fully filled with aluminum silicate cotton.
3. Vulcanization box is divided into three zones, each zone with trimmer potentiometer which adjusts the speed of the three zones of vulcanizing box to equilibrium; In the middle of each zone with the ventilating device, and removing the emissions generated by the vulcanization process in time in order to ensure the smoothness of the rubber products.
4. Cooling tank is used to cool high temperature rubber seals and then use high-speed airstream drying them.
5. The entire production line speed is adjustable to match with speed of the extruder. Various types of basic parameters:

Type	Screw diameter(mm)	Screw L/D ratio	The maximum speed of screw(r/min)	Motor power (kw)	Maximum productive capacity(kg/h)	net weight (KG)
SJ-45	φ45	16:1	70	7.5	50	500
SJ-65	φ65	20:1	65	37	120	1200
SJ-75	φ75	20:1	60	37	120	1700
SJ-90	φ90	20:1	55	55	300	3200
SJ-120	φ120	20:1	50	110	600	5200
SJ-150	φ150	20:1	45	135	720	6500

Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.

our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...

Market: our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions

Professional engineers and teams, then basing on customer requirements, we accept OEM*ODM machines, also oversea engineer service is available.

---
