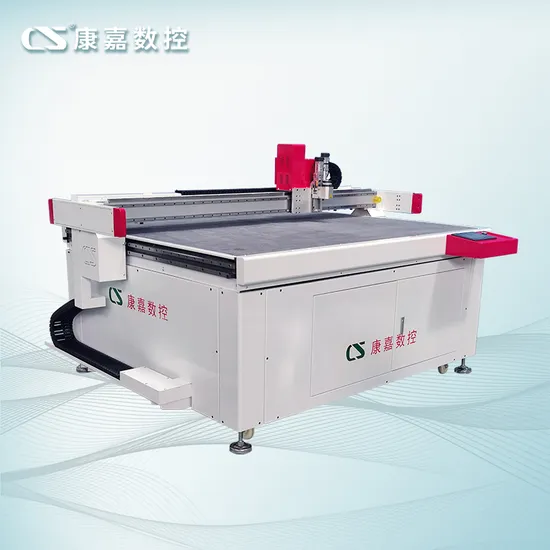

Manufacturer Hot Sale CNC Oscillating Knife Cloth Fabric Leather Textile Garment Apparel Rubber Sponge Foam Seat Covers Cutting Machine for Car Floor Mats
| Model | 1625/1630/1830/2030, can be customized. |
| Working area | 1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm |
| Rated power | 7-11KW |
| Fixed mode | Flat table /auto feeding table optional , table structure: whole welding process |
| Multifunctional heads can be optional | Vibration knife (oscillatory knife) |
| Circular knife (round knife / rotary knife) |
| Oblique knife (V-cut) |
| Marking pen |
| Punching roller (round punching/v-punching/optional) |
| Milling knife |
| Drag knife |
| Pneumatic knife |
| Projector and camera optional |
| Safety device | Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable. |
| Material feeding type | Auto feeding or manual feeding |
| Material fixed type | Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw |
| Translational velocity | 800-1500mm/s |
| Cutting speed | Max. 1500mm/s (according to different cutting materials) |
| Cutting thickess | ≤60mm (according to different cutting materials) |
| Cutting material | Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc. |
| Repated accuracy | ≤0.1mm |
| Cutting type | Mechanical vibration physical cutting |
| Transmission / driving system | Motor brand Panasonic, YASKAWA, Fuji, Delta |
| Transmission type / Guide rail | Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw |
| Instruction system | HP-GL compatible format |
| Control system | LCD touch screem ( custom made) |
| Voltage | 110V/220V / 380V±10%; 50HZ, 60HZ |
| Other configuration | Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump |
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
1. Saving labour and material cost
2. Saving time
3. Everyone can operate and cut without lots of skills
4. Boost production capacity
5. Consistent accuracy even with complicated patterns
6. Reduces your lead times of pattern cutting from your clients
7. Wide range of clothes/garment/apparel material application
8. Running in a high automaton
9. Special design: less moving structure guarantee low down time and easy in installation and maintain
10. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
12. CNC control
13. Knife cutting method: oscillating Blade with multifunctional tool heads
14. Easy conversion
15. With more and more agents / partner joining us, after sales team can be in your country by your side.
