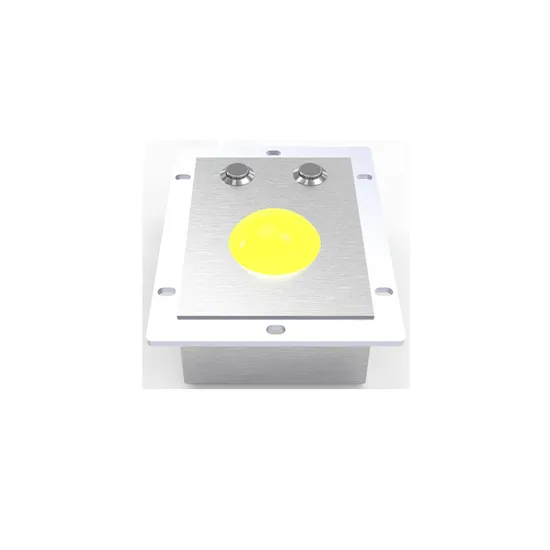

50mm Industrial Rugged Panelmout Trackball with Yellow Resin Ball

Product Description

Rugged stainless steel,water-proof,vandal-proof,high-sensitivity,durable trackball with left and right click buttons and ball diameter 250mm

Items	Specifications
Typical Feature	This trackball includes a rugged stainless steel enclosure that other conventional trackballs also may have,however its ball is replaced with a bigger one that is made of resin,this enhancement makes the ball bigger and lighter than those in other trackballs,which can bring a better feel of grasping and controlling the ball by its user,this is not what other trackballs can surpass.
Key Features	- Optical trackball - Enclosure is made of abrasion-resistant stainless steel - Specially designed to operate in harsh environments, making them ideal for web payphones, kiosks and other demanding applications - Dust-proof and liquid-proof,IP65 compliance - Vandal-proof - Compatible with WINDOWS98/ME/2000/XP - PS/2 or USB interface - Panel mount
Material	- Front Panel: 304 stainless steel - Key: 304 stainless steel - Trackball: Resin - Back Panel: aluminum alloy
Electrical Data	- Voltage: 5.0VDC ±5% - Electric current: 10mA - EMC compliant - Optical Trackball resolution: 1000dpi
Environmental Characteristics	- Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data	- Lifecycle: >5 million times per key - Key Travel: 2mm - Actuation Force for Keys: 80g nominal - Lettering: etched graphics with permanent ink - Trackball diameter: 50mm
Compatible Operation System	- PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability	-MTBF:>20,000 hours -MTTR:<30 minutes
Dimension	- Face plate:110 x 83 mm(LxW)
Weight	-0.50 kgs

Company Information:

KINGLEADER is an ISO9001:2015 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.

Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.

Why us?

1,ISO9001:2015 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,20+ years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry

---
