Rubber Compression Molding Machine, O-Ring Making Machine, Silicon Molding Parts Making Machine

Product Description

rubber compression molding machine , o-ring making machine , silicon molding parts making machine
1. Machine Features:

1, dual-motor dual-pump dual hydraulic system design, two working positions independently controlled, independent operation, when two operating positions curing time and take the time to stagger products, only one operation, the equivalent of one person to operate two machines;
2, the former top Clamping way out of the mold clamping mechanism, the mold is opened in front of the machine, easy to take products;
3, using high vacuum vacuum hood design, can mold is nearly complete vacuum environment, improve the mold exhaust performance;
4, countertops installation mold venting strong spring, with vacuum system, no bubbles forming high-quality products;
5, vacuum hood within 4 seconds to complete the vacuum of -650mmHG the above, for molding easy, requiring of the finished product is most suitable;
6, the machine fully functional, fit to be repeated mold and structural diversity of the mold, the next shot and thimble optional equipment;
7, the clamping force per unit area is large, ensure seamless mold together tightly, no flash products, good quality.


2. Application:
Applicable to o-rings, packing, keyboards, rotary drums, anti-shock supplies, black rubber products, daily necessities, gaskets, etc. whose appearance require beautiful and edges

3. Main model and parameter :

Type	TVS-100	TVS-200	TVS-250	TVS-300	TVS-400
Clamping force(Ton)	100	200	250	300	400
Stroke(mm)	250	250	250	250	500
Heabngplate size(mm)	450*450	540*560	600*650	650*650	800*800
Dimeter of cyhnder(mm)	250	350	400	450	500
Horse power(HP)	5.5*2	7.5×2	10×2	10×2	11*2
Total power(KW)	33	40	53	53	62
Gross weight(TON)	4	6.5	8.5	12	18
Machine size(m)	2.4*1.8*1.7	3×2.05×2.3	3.3×2.1×2.3	3.35×2.55×2.4	4.45*3.4*2.5

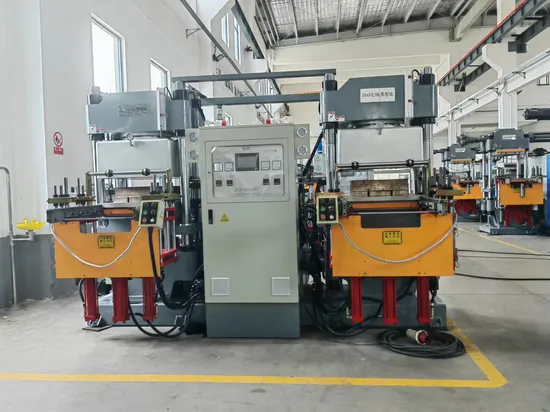

4. Machine and products pictures :

5. Package :

6. Our exhibition :
7.Our factory:

8.The main service item on our machine
installation and debugging: Our engineers will teach you about the installation and debugging for free. Technology training : Our company will offer technology training for your operation. After-sales service: We will supply the free repairment on this machine for one year,
but will supply the maintenance lifetime. ( the service is only for natural damage)

---
