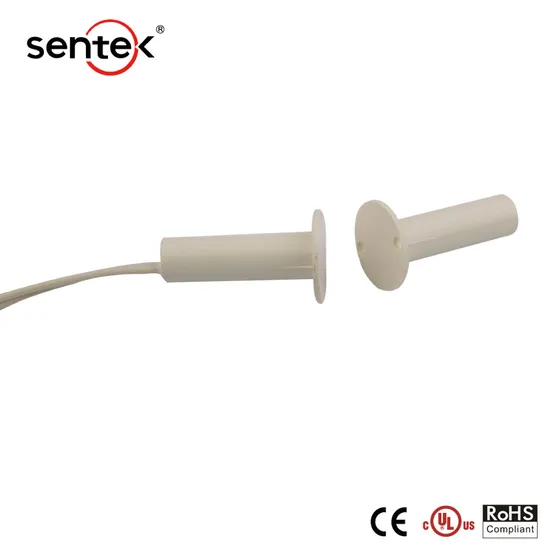

Flanged Recessed Door Window Sensor Magnetic Contacts

US$0.65-1.20 1,000 Pieces (MOQ)

Basic Info.

Model NO.

BR-1019

Usage

Door, Window, Auto

Certification

CE, ISO, RoHS, UL

Maximum Switching Voltage

100

Maximum Switching Current

0.5

Color

White, Brown, Grey

Reed Form

N/O,N/C,Spdt

Loop Type

Closed,Open, Closed&Open

Transport Package

Box

Specification

Plastic

Trademark

Sentek

Origin

Ningbo China

HS Code

8531901000

Production Capacity

200000/Month

Product Description

Order Information:

Part Number	Loop Type	Reed Form	Closed Gap (Inch (mm))	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
BR-1019	Closed	N/O	3/4 (19)	0.150	10	100	0.5
BR-1019WG	Closed	N/O	1 (25)	0.150	10	100	0.5
BR-1019A	Open	N/C	3/4 (19)	0.150	3	30	0.2
BR-1019C	Closed & Open	SPDT	3/4 (19)	0.150	3	30	0.2

Recessed Door Window Sensor Magnetic Contacts
Dimension (mm):
Product Features:
* Flanged recessed switch
* 3/8" diameter press to fit
* Standard 18" #22AWG leads
* Special wire available
* Swith and Magnet available seperately
* Resistor, Diode and Supervisory Loop available on request
* Colors: White, Brown, Grey
