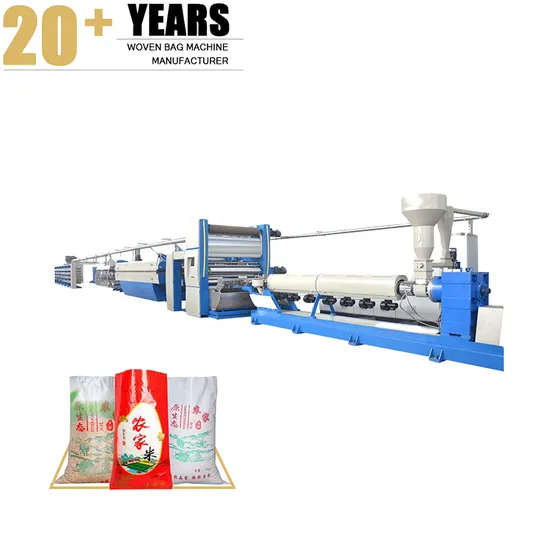

PP Flat Film Yarn Making Machine

Product Description

Type	Max extrusion volume	Driving power of extruder	Screw diameter	Ratio of L/D	Revolution of screw	Die lip width	Max productiona speed
ZD-SPL-70/33/850	180kg/h	45kw	70mm	33:1	20-120 r/min	850m/min	280m/min
ZD-SPL-90/33/1000	280kg/h	90kw	90mm	33:1	20-120 r/min	1000m/min	280m/min
ZD-SPL-100/33/1100	350kg/h	90kw	100mm	30:1	20-120 r/min	1100m/min	280m/min
ZD-SPL-120/33/1500	490kg/h	160kw	120mm	30:1	20-120 r/min	1500m/min	280m/min

Type	Flat thread fibre scope	Drawing ratio	Number of winder	System installed capacity	Syetem normal operational capaciy	Overall dimensions(L*W*H)
ZD-SPL-70/33/850	60-200tex	4-10	144	240kw	128kw	2700*3700*2800
ZD-SPL-90/33/1000	60-200tex	4-10	176	300kw	160kw	3500*3700*3000
ZD-SPL-100/33/1100	60-200tex	4-10	192	320kw	170kw	3400*3700*3000
ZD-SPL-120/33/1500	60-200tex	4-10	256	400kw	210kw	3700*3900*2600

The flat yarn making machine is adopted micro-processor control, frequency conversion governor and setting
andisplaying technical data may be fully digitized on the basis of absorbing international advanced teparts use
quality products. The line enlarges L/D ratio and adopts new type of separating screw and widens mixing smezone
on the extruder screw pot which is specially processed using quality steel, fine plasticized effect, low energy
consumption Changing filter system ofg line, we apply advanced automatic bechangehe bake-board is changed into
advanced hot drawing oven and principal technical index of the line reachesernational advanced level. The winding
machine is of friction-free drive and constant tape tension wind, good formatione Ine has the performance OT high speed,
top yleld, low energy consumption, good Forming quaber drum. The structure of the line is compact wticated
manufactngineering, convenient operation and reliable production, it can be used in producingflat fiber form thermoplastic,
such as polypropylene(PP)and high-density polyethylene(HDPE)etc.
The machine using material of polypropylene & high density polyethylene , through heating extruding and drawing
makes tape that is then winded for the weaving of thecircular loom .Through our sustained improving , the machine
can use 100% regenerated PP & PE , powder or grain PP & HDPEto produce tapes . The screw and cylinder of extruder
are of 38 CRMOALA alloy steel , the hardness is overHV 950 after nitrogenation treatment . Helical gear reducer
made of 20 rmnti Tally steel is applied to the extruder , thegears & chain wheels are made of 45 # medium carbon
steel and done the treatment of high frequency quench . Thedriving rollers are plated with hard Cr , tension
self-controlling of winding-rollers are applied to the driving unit .The cylinder of extruder , triton and die adopt
aluminum cast heater which is endurable.
1. Q:How long will your engineer reach our factory? A:Within one week after everything ready (machine arrival your factory, nonwoven material, power source, air compressor etc.Prepared).
2. Q:How many days will you finish installing ?
A:We will finish installation and training within 15 days.
3. Q:What should we charge for your engineer?
A:You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. Q:How long is your machine's warranty period?
A: All our machine have half a years guarantee for electricity parts and one years guarantee for mechanism, starting from finished installation.
5. Q:How could you do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
6. Q:How could you do after one year warranty period?
A:We also can do service for you, but you need pay salary for our technicians 80USD/day for each person.
7. Q:Does your engineer understand English?
A:Our engineers understand a little English. All our engineers have more than five years machine installation experience.
8. Q:Can you help us find any engineer in our location?
A:Of course, we will check and inform you as soon as possible.
9. Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.

---
