Product Details
Product Description
Product Description
【Product Descriptions】

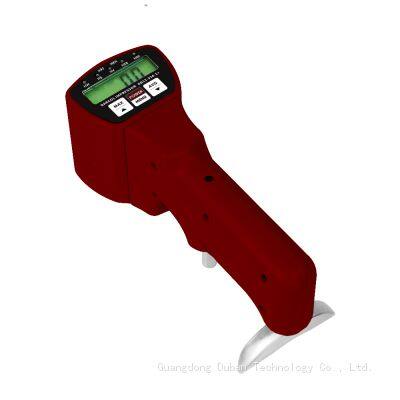

Is the latest development and design of digital indentation hardness tester.Mainly used in aluminum processing industry. Used for testing pure aluminum, soft aluminum alloy, thick aluminum alloy,aluminum strip, aluminum section bar, aluminum bar, aluminum casting, aluminum forging and aluminum alloyproducts. Can also be used in glass steel industry.The relevant industry standard is ASTM B648-10(2015),ASTM D2583-13, GB/T 3854-2005.
【Product Features】
* Able to measure the hardness of the material (Hba).
*"+"can also measure the hardness of material Brinell Hardness Scale (HB), Vickers Hardness Scale (HV), Webster Hardness Scale (HW), Rockwell Hardness Scale (HRB/HRE/HRF/HRH).
* With the maximum hold function, hold the maximum hardness value during measurement.
* "+"has the function of calculating the average value, and the average value of the 29 sets ofdata are calculated at most.
* No need to support. The hardness tester is only tested on one side of the sample without support.
【Product Specifications】
Range
| 0Hba~100Hba,Amount to 25HBW~135HBW
|
Resolution
| 0.1HBa
|
Indication Error
| 81Hba~88Hba±1Hba
|
42Hba~48Hba±2Hba
|
Repeatability Error
| 81Hba~88Hba±1.5Hba
|
42Hba~48Hba±2.5Hba
|
Brinell Hardness
| √
|
Vickers Hardness
| √
|
Wenster Hardness
| √
|
Rockwell hardness
| √
|
Maximum Hold
| √
|
Average Calculation
| √
|
Operating Condition
| Temperature:0ºC~50ºC Humidity:<80%RH
|
Power Supply
| 2x1.5V AAA(UM-4)Battery
|
Dimensions
| 170mmx63mmx82mm
|
Weight
| 390g(Not Including Batteries)
|
Standard
| Main Unit
|
Accessories
| 2 Pins
|
2 Standard Blocks
|
Screw Driver
|
Spanner
|
Carrying Case
|
Operation Manual
|
Optional
| Bluetooth Data Adapter with Software
|
>>
